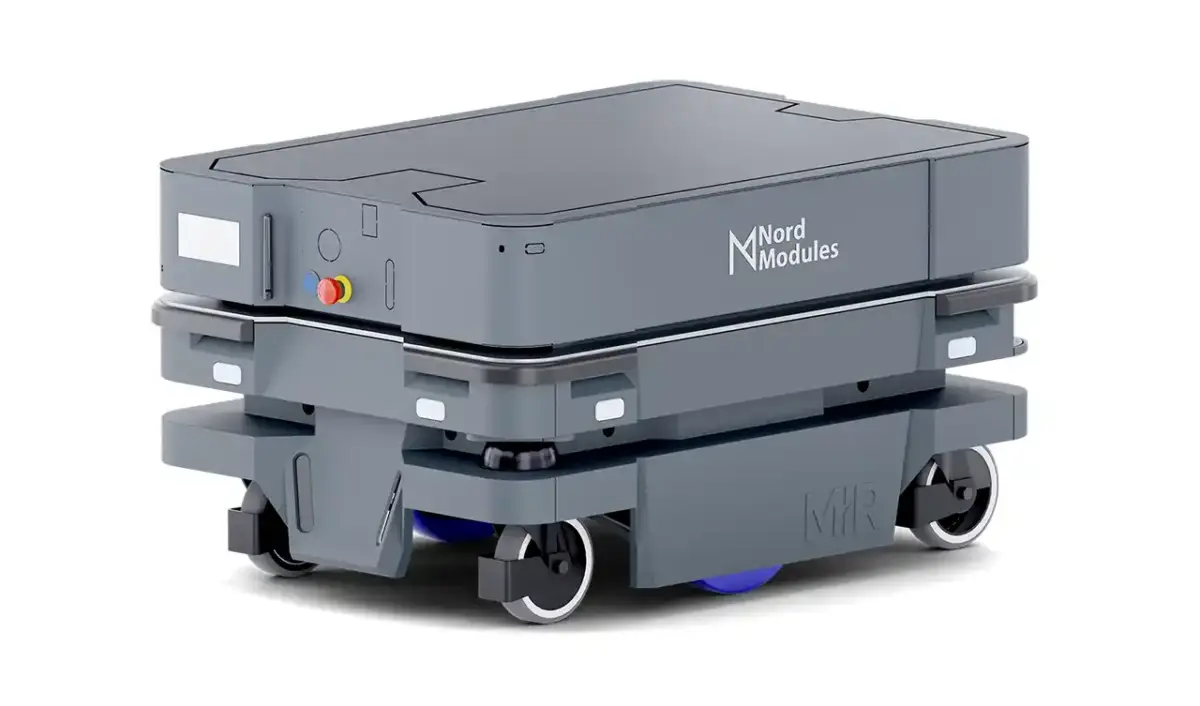

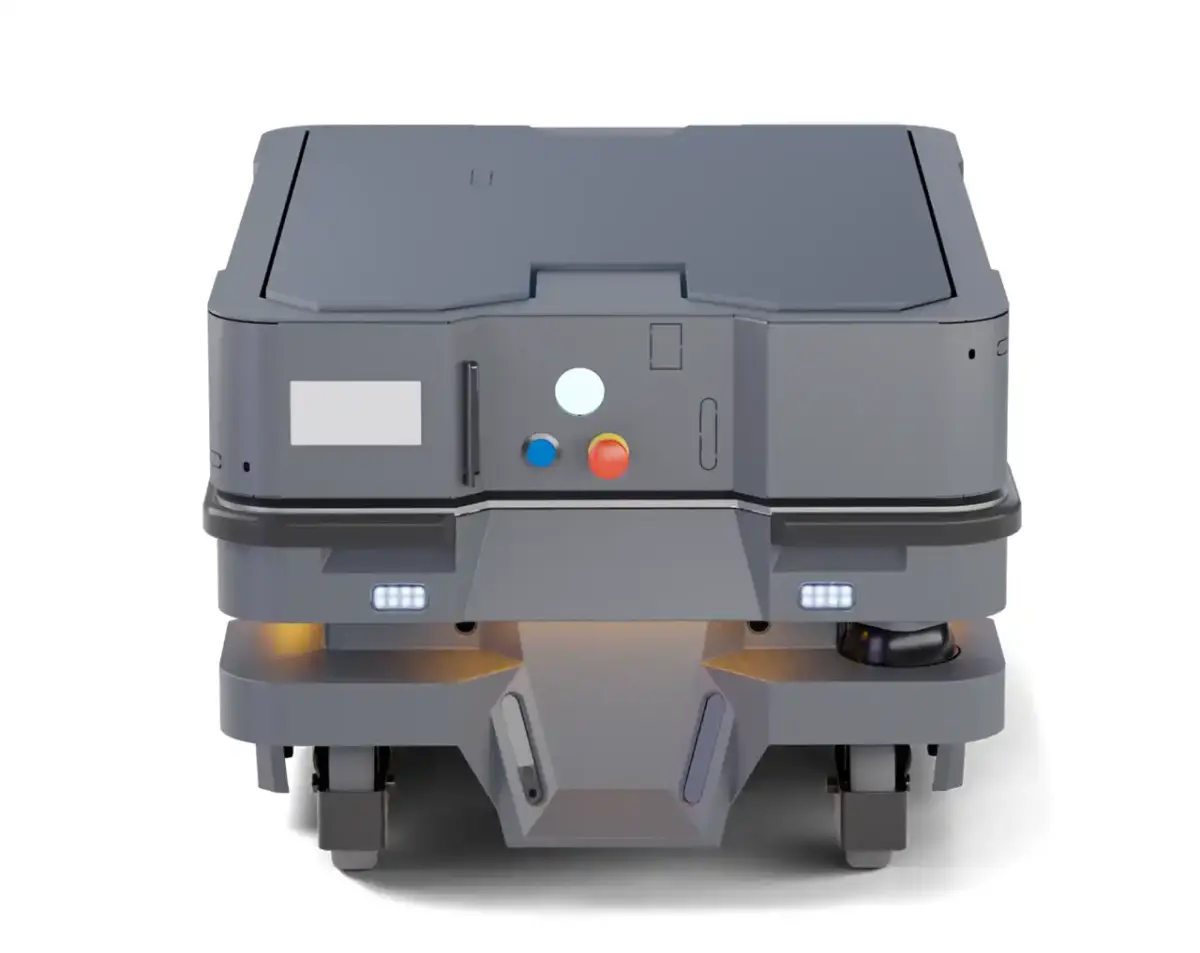

Nord Quick Lift 220-510
The Nord Quick Lift 220-510 is a highly flexible lifting module designed specifically for autonomous pick-and-place applications with the MiR250. It enables the seamless transport and transfer of pallets, boxes, and racks. Thanks to its robust construction and an impressive payload of up to 210 kg, it optimizes material flows in dynamic industrial environments. A key feature is its versatility: The Quick Lift can be effortlessly transformed into a Quick Mover, offering companies a versatile 2-in-1 solution for a wide variety of load types.
Description
The Nord Quick Lift 220-510 (part number QL220-510) is designed for maximum safety and efficiency in intralogistics. It is the ideal choice for companies seeking a low-maintenance and easy-to-install solution for fully automated goods transport. The module communicates directly with the AMR (Autonomous Mobile Robot), transmits error codes, and thus enables transparent process monitoring.
Installation is straightforward, using threaded holes directly in the platform. For specific requirements, the system can be expanded with numerous add-ons, such as sensors for pallet detection, barcode scanners for load verification, or a signal tower to increase visibility. With a transport area of 481 x 718 mm, the Quick Lift offers sufficient space for standard industrial containers and ensures a stable flow of goods without manual intervention.
Technical details
| MiR compatibility | MiR250 |
| Max. payload | 210 kg |
| lift height | 80 mm |
| lifting speed | 3.5 s (no load) / 11 s (at maximum load) |
| Dimensions (L x W) | 794 x 560 mm |
| Height (retracted/extended) | 147.5 mm / 227.5 mm |
| transport area | 481 x 718 mm |
| net weight | 34 kg |
| Service life | At least 600,000 cycles at maximum payload |
| Add-ons (optional) | Payload sensors, barcode scanners, signal tower, spacer kit |
