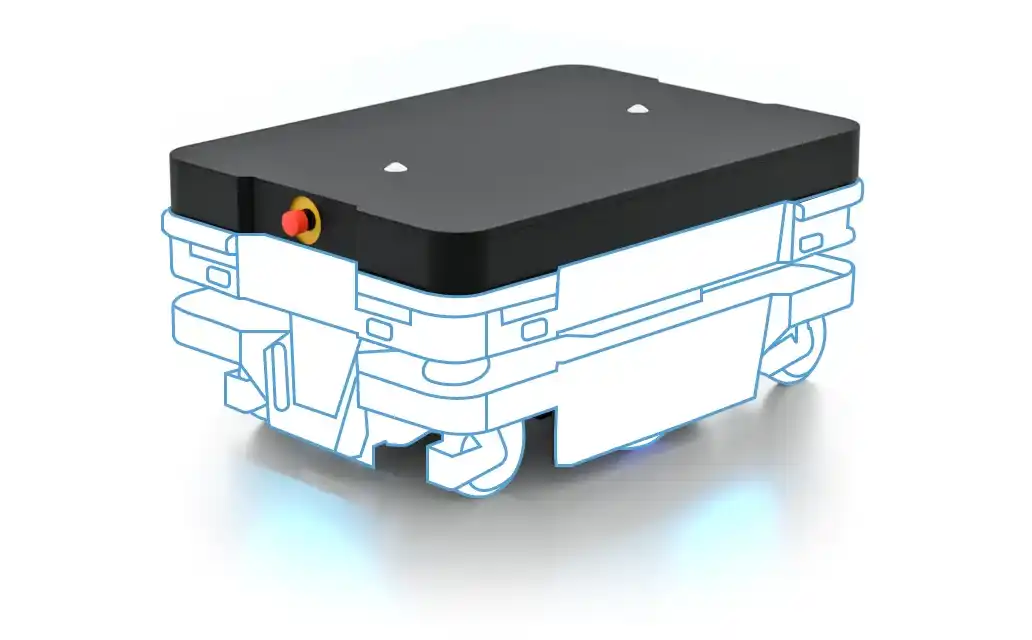

MiR Shelf Carrier 250

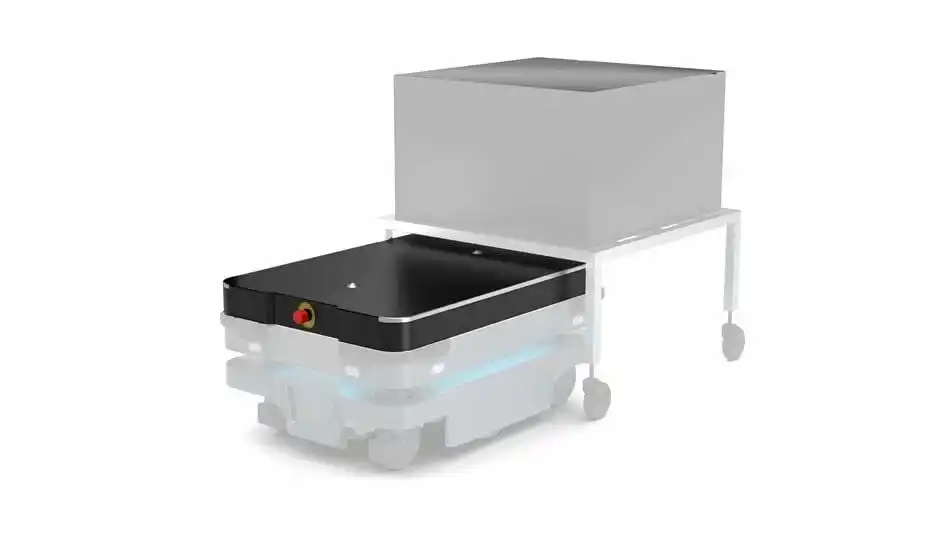

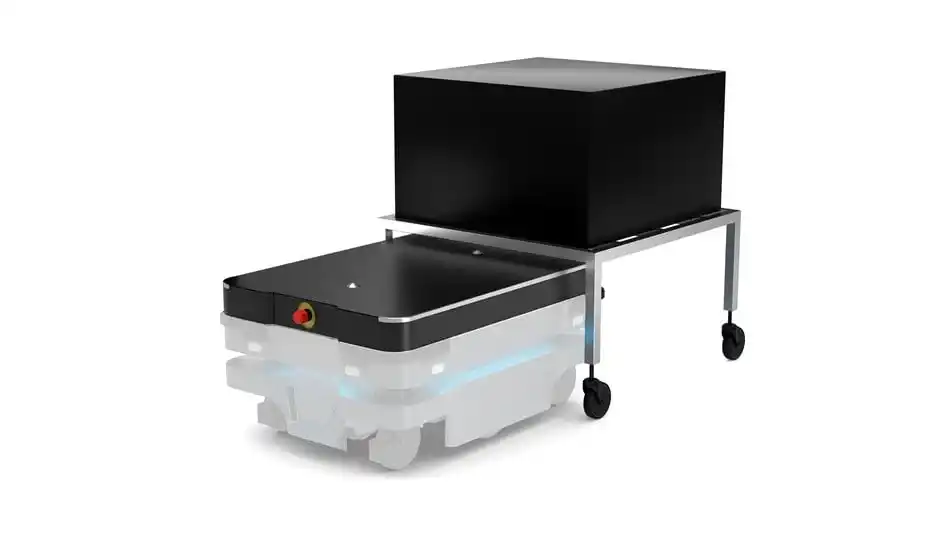

The MiR Shelf Carrier 250 is a specialized top module for the MiR250 that functions as a docking device. It enables the robot to autonomously pick up shelves, carts, and other attachments, securely lock them in place, and transport them to their destinations. With a payload capacity of up to 300 kg, this module optimizes the utilization of the MiR250 fleet by enabling flexible switching between different transport units without manual assistance.
Description
When used with the MiR Shelf Carrier 250, the MiR250 becomes a highly flexible transport solution. Instead of using fixed attachments, a single robot can handle a variety of carts or shelves. The module lifts the load by 27 mm to ensure secure locking during travel. With a compact installation height of just 77 mm, the entire system remains stable and agile.

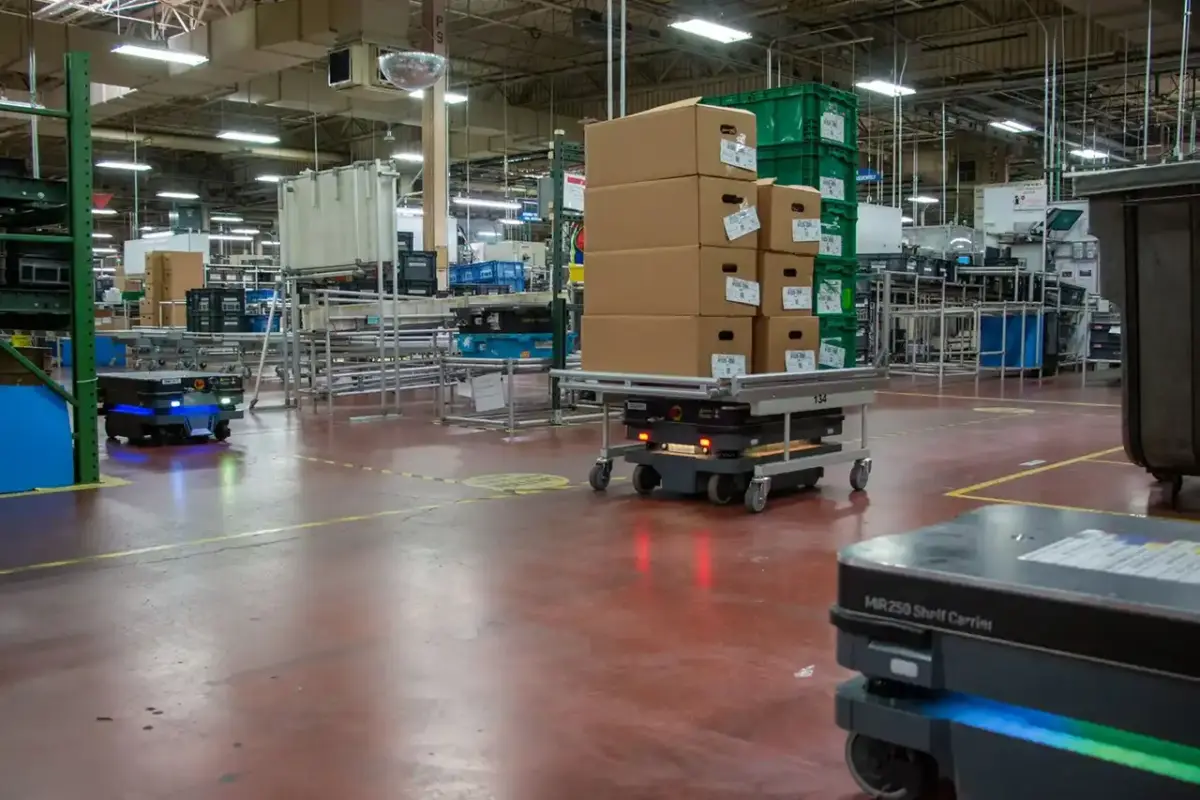

This integration frees skilled workers from repetitive transport tasks. Thanks to its precise navigation, the system moves safely through corridors with a width of 1,400 mm or more. The combination of high efficiency and low power consumption—just 35 W—makes the Shelf Carrier an essential component of modern, automated intralogistics.
Technical details
| Usage | Anchoring device for shelves and carts |
| Max. payload | Up to 300 kg (including the weight of the cart) |
| lift height | 27 mm |
| loading area | 800 x 580 mm |
| Dimensions (L x W x H) | 778 x 560 x 77 mm |
| Weight (module) | 30 kg |
| Minimum corridor width | 1,400 mm |
| IP rating | IP21 |
