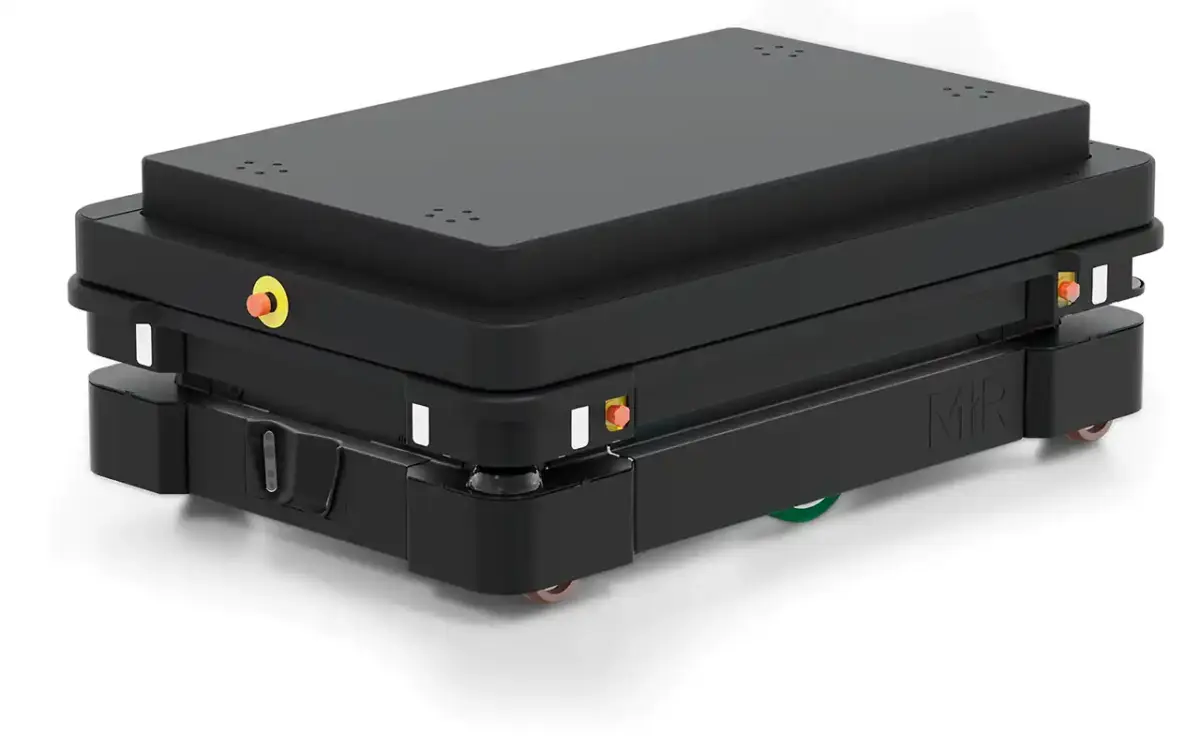

MiR Shelf Lift
The MiR Shelf Lift is a high-performance top module specifically designed for the autonomous picking up and setting down of carts, shelves, and other lifting applications. It is designed for use with the MiR600 and MiR1350 heavy-duty robots and enables the efficient transport of loads weighing up to 1,000 kg. This solution offers maximum flexibility, as a single robot can handle various transport units without manual intervention, significantly optimizing material flow in production and logistics.
Description

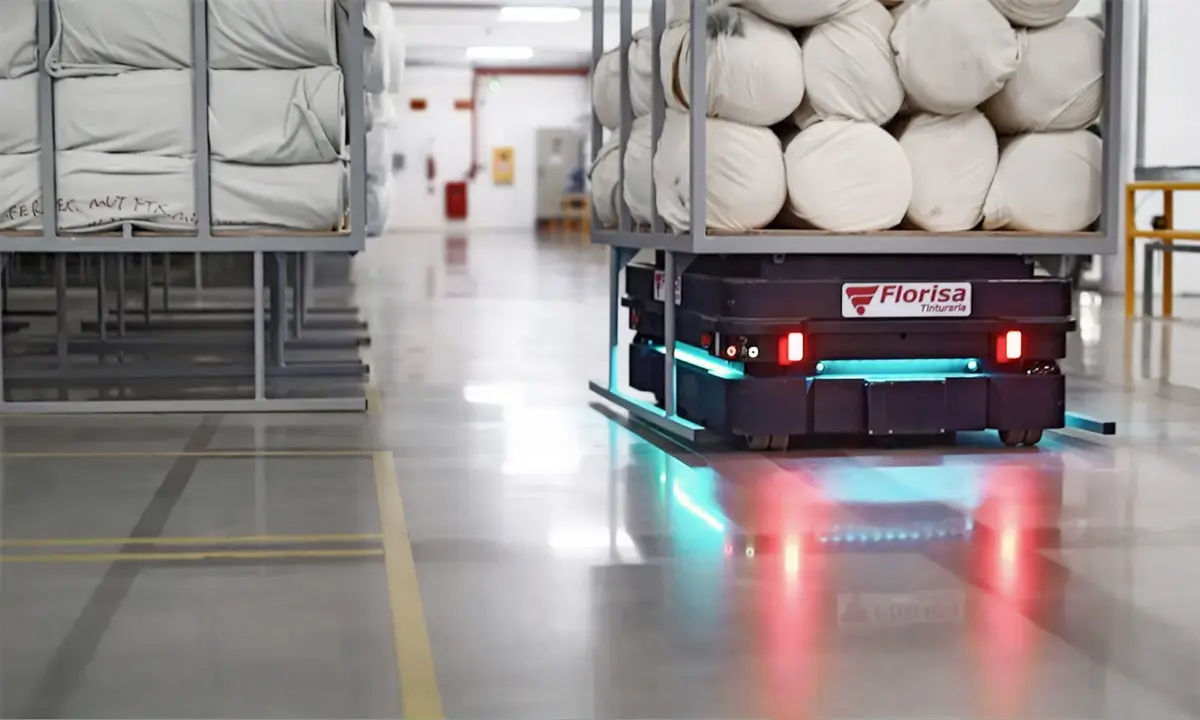

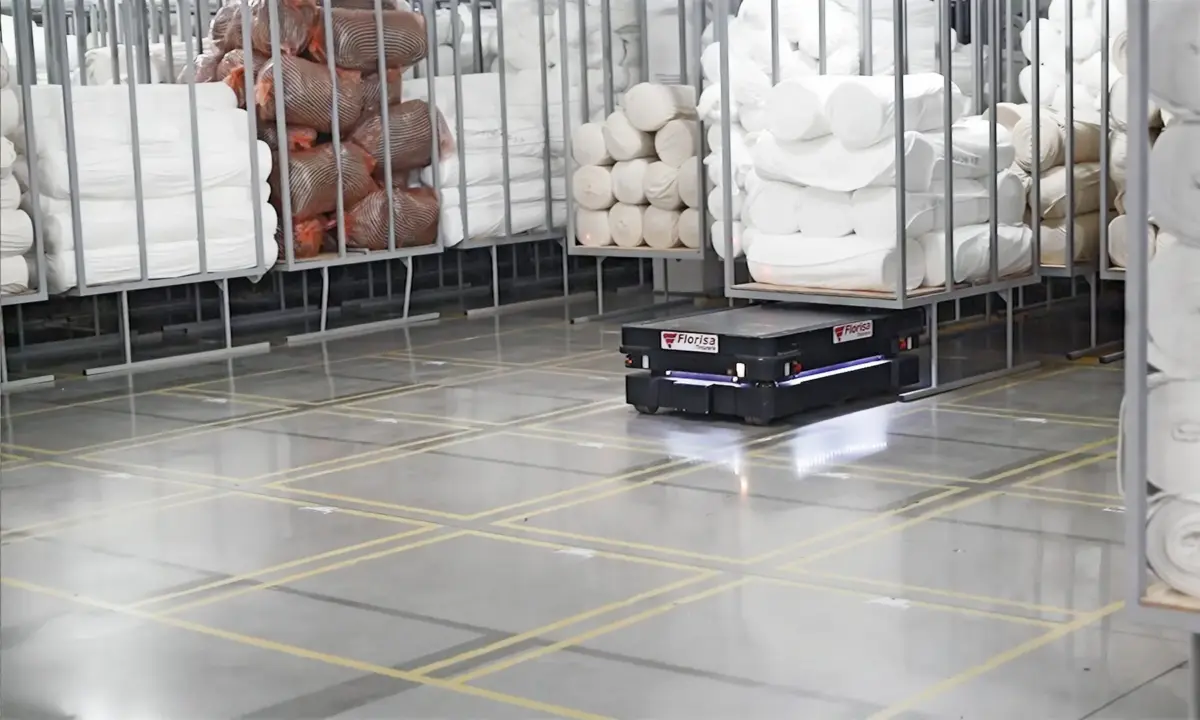

The MiR Shelf Lift takes heavy-duty transport to a new level of automation. This module enables the MiR600 and MiR1350 robots to drive under carts on their own, securely lock onto them, and transport them to their destination. With a low profile of just 94 mm when lowered and a lifting height of 60 mm, it can easily slide under and lift a wide variety of cart designs.
The system’s design ensures maximum reliability in everyday industrial use: the lifting mechanism has been tested for at least 50,000 cycles under maximum payload. The system safely navigates around people and obstacles, ensuring smooth operation in dynamic environments. By eliminating manual transport tasks, employees are relieved of this burden and can be assigned to more value-added activities. The robust aluminum construction also ensures a long service life of up to 20,000 operating hours.
Technical details
| Usage | Autonomous retrieval and delivery of carts and shelves |
| compatibility | MiR600 and MiR1350 |
| Max. payload | 1,000 kg |
| lift height | 60 mm |
| Height (lowered) | 94 mm |
| Height (raised) | 156 mm |
| Frame dimensions (L x W) | 1304 x 910 mm |
| Service life | 5 years or 20,000 hours |
| Lifting cycles | at least 50,000 (at maximum load) |
| Material | Aluminum |
