Nord Lift EU

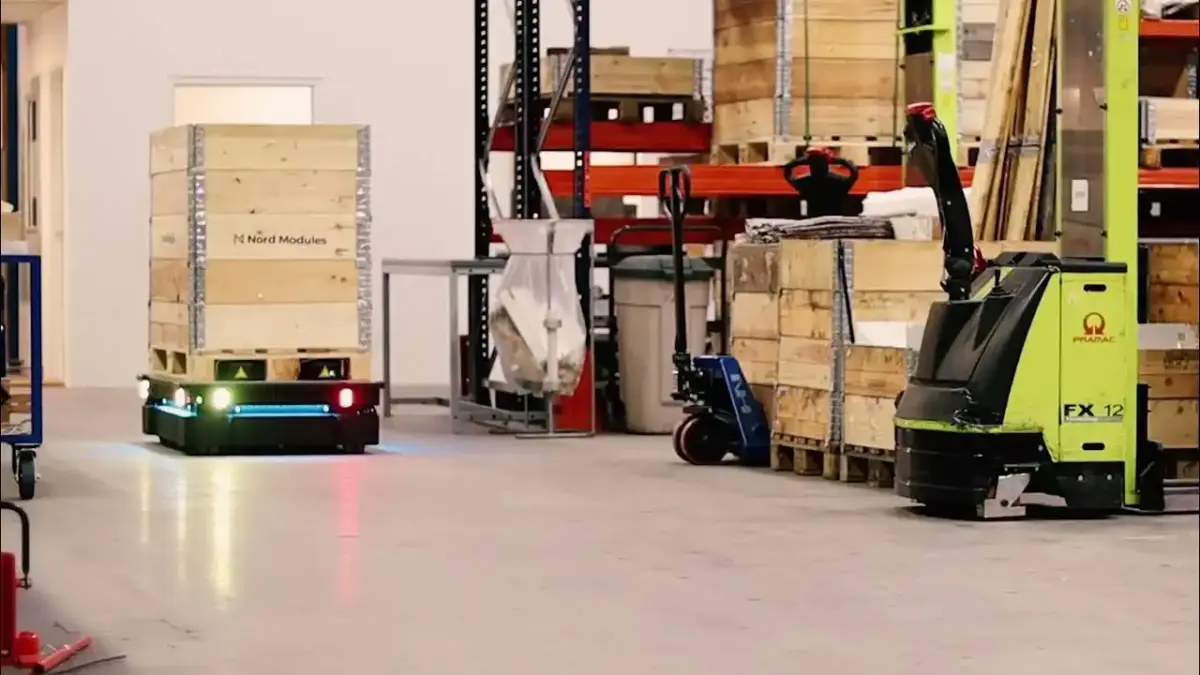

The Nord Lift EU is a top-of-the-line module for autonomous mobile robots designed for the automated picking, lifting, and transport of EUR pallets. The module was developed for use with MiR AMRs and enables the autonomous retrieval of pallets from pallet racks as well as the stable transport of heavy loads. This makes the Nord Lift EU particularly well-suited for automated intralogistics processes with high load-bearing requirements.
Description
The Nord Lift EU adds an integrated lifting function for EUR pallets to autonomous mobile robots. The top module automatically lifts pallets from pallet racks, lowers them for transport, and thus ensures stable and safe movement within the intralogistics system.
The robust scissor lift design is designed for continuous industrial use and also allows for the safe handling of unevenly distributed loads. Thanks to its standardized design, the Pallet Lift EU can be efficiently integrated into existing material flow concepts and helps companies reduce manual pallet transport and automate processes.
Technical details
| area of application | Autonomous pickup and delivery of EUR pallets |
| Compatible AMRs | MiR500 to MiR1350 |
| Compatible systems | MiR Pallet Rack |
| Weight | 85 kg |
| length | 1,250 mm |
| width | 6.4 inches |
| height | 87 mm |
| lift height | 60 mm |
| Max. load capacity | 1,250 kg |
| lifting speed | Up: 3.5 s / Down: 3.5 s |
| pallet size | EUR pallet 1,200 × 800 mm |
| pallet standard | EN 13698-1 |
