Nord Quick Mover 220-510

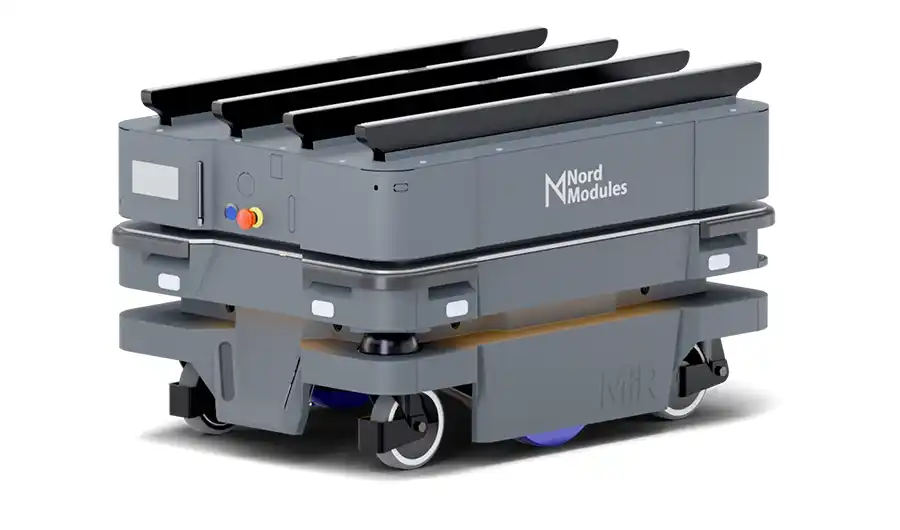

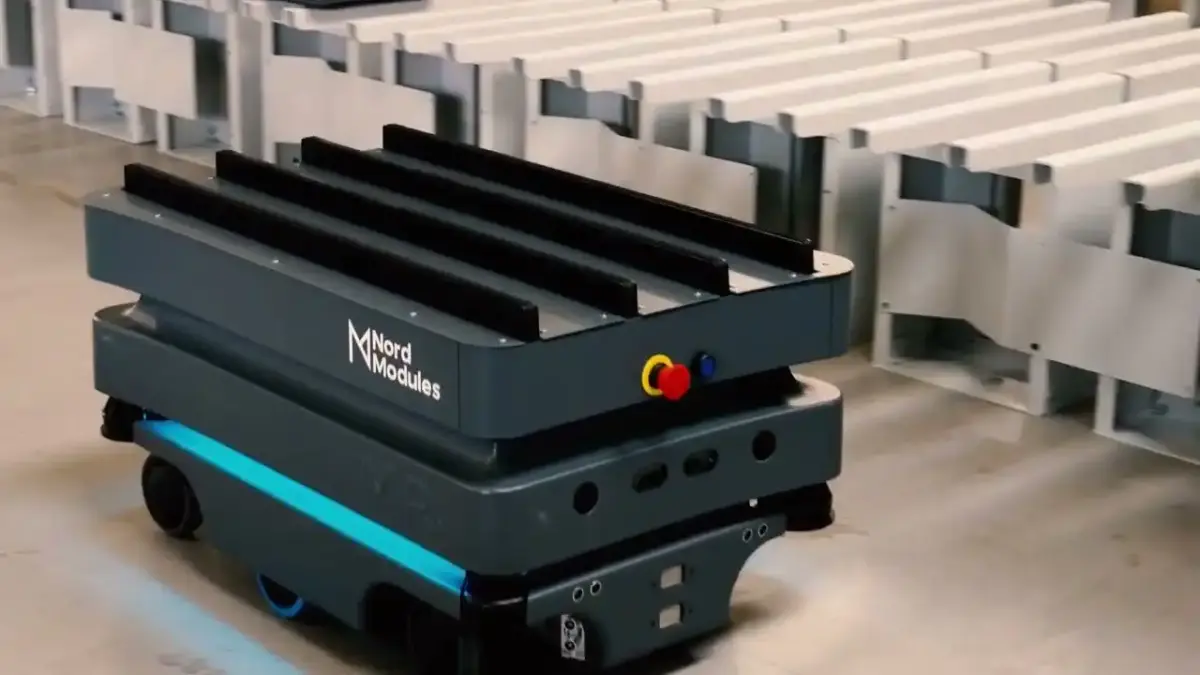

The Nord Quick Mover 220-510 is a top-of-the-line module for autonomous mobile robots, specifically designed for the automated pickup and transfer of goods. The module is mounted on the mobile robot and uses an integrated lifting mechanism to independently pick up and set down loads at gates or on shelf carts. In combination with Nord gates and Nord carts, the Quick Mover enables a seamless, automated material flow in production and logistics environments.
Description

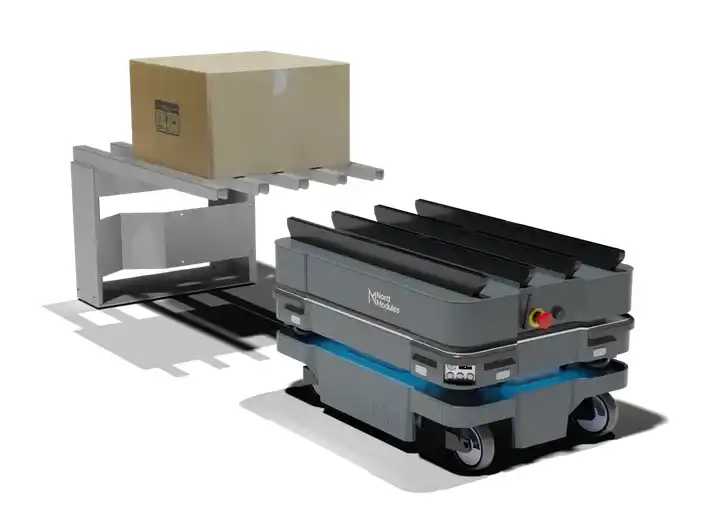

The Nord Quick Mover 220-510 is mounted directly onto an autonomous mobile robot as a top module, adding an integrated lifting function. The module enables the robot to pick up goods on its own, set them down at transfer stations, or transport shelf trolleys.
Thanks to its standardized design, the Quick Mover can be flexibly integrated into material flow concepts in which autonomous robots work together with stationary gates or mobile racking systems. The combination of lifting mechanics, high load capacity, and precise control ensures reliable transfers and stable process quality.
The Nord Quick Mover 220-510 is designed for continuous industrial use and helps companies reduce manual transport processes and efficiently automate internal logistics operations.
Technical details
| Robot compatibility | MiR250 |

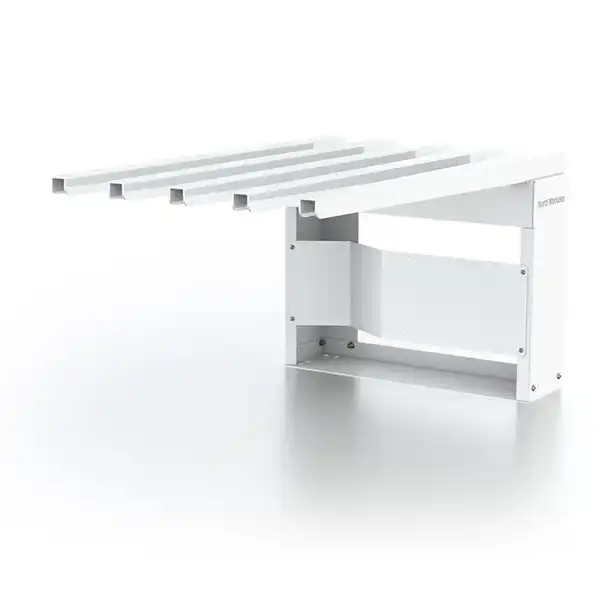

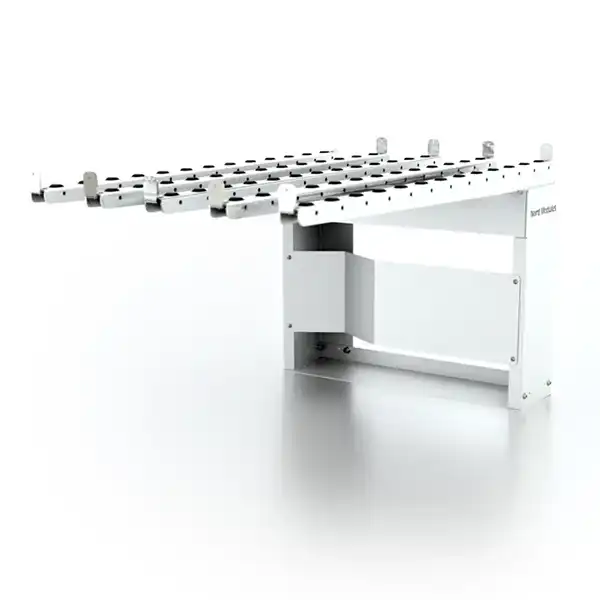

| Nord Modules Compatibility | Basic & Wheel Gates, Shelf Cart, Cobot Tower |
| Weight | 30 kg |
| length | 800 mm |
| width | 600 mm |
| height | 170 / 230 mm |
| lift height | 60 mm |
| Distance between beams | 140 mm |
| transport area | 800 × 600 mm |
| Max. load capacity | 220 kg |
| Lifting cycles (max. load) | ≥ 600,000 |
| lifting speed | Up: 3.5 s / Down: 3.5 s |
