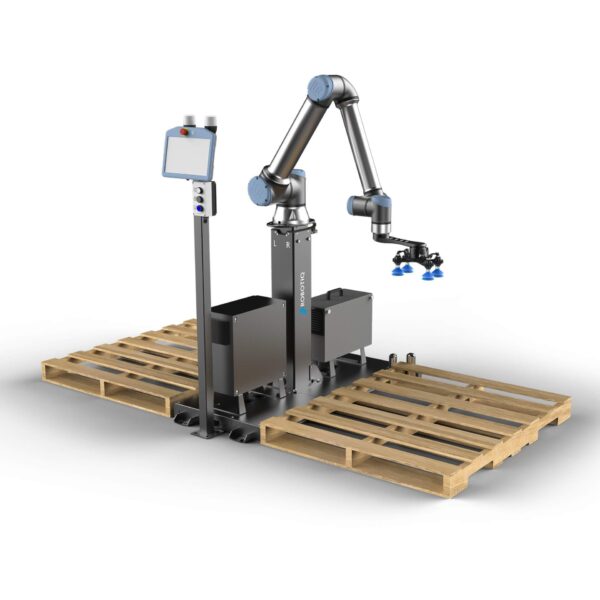

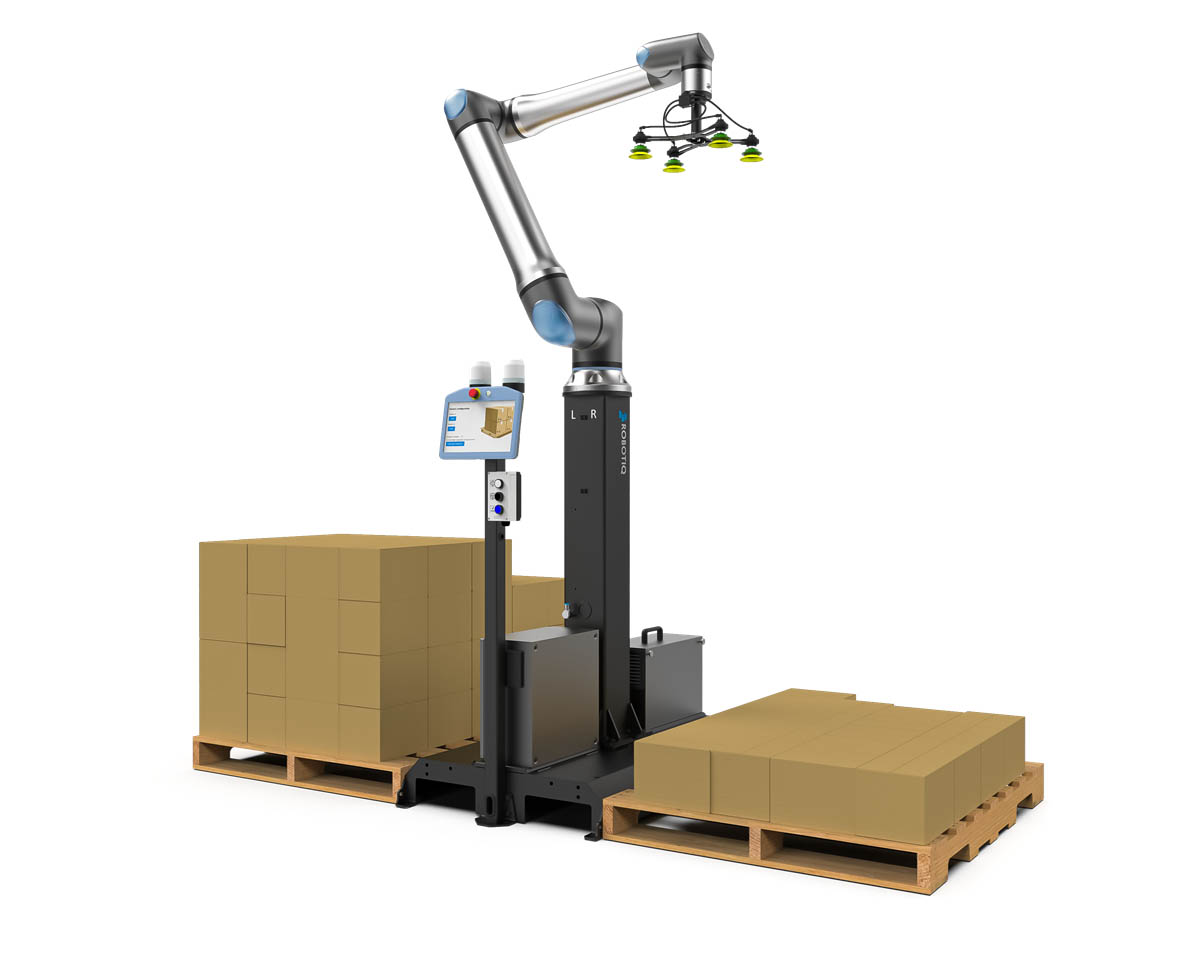

Robotiq PE Series Palletizer
The Robotiq PE Series is a space-saving palletizing solution for applications that work with typical carton sizes and medium pallet heights. It combines a robust mechanical base with simple operation and is based on the UR10e or UR20, depending on the model. The systems can be quickly integrated into existing production lines and are suitable for companies looking for reliable, low-maintenance, and economical palletizing automation without the need for additional lifting mechanisms or complex axis systems.
Description
The Robotiq PE Series is designed to operate consistently and stably, even during continuous cycle times throughout entire shifts. By eliminating the need for an integrated vertical axis, the system remains mechanically straightforward, which reduces maintenance and increases reliability. The fixed column height ensures clear movement spaces and easy planning of the system layout.

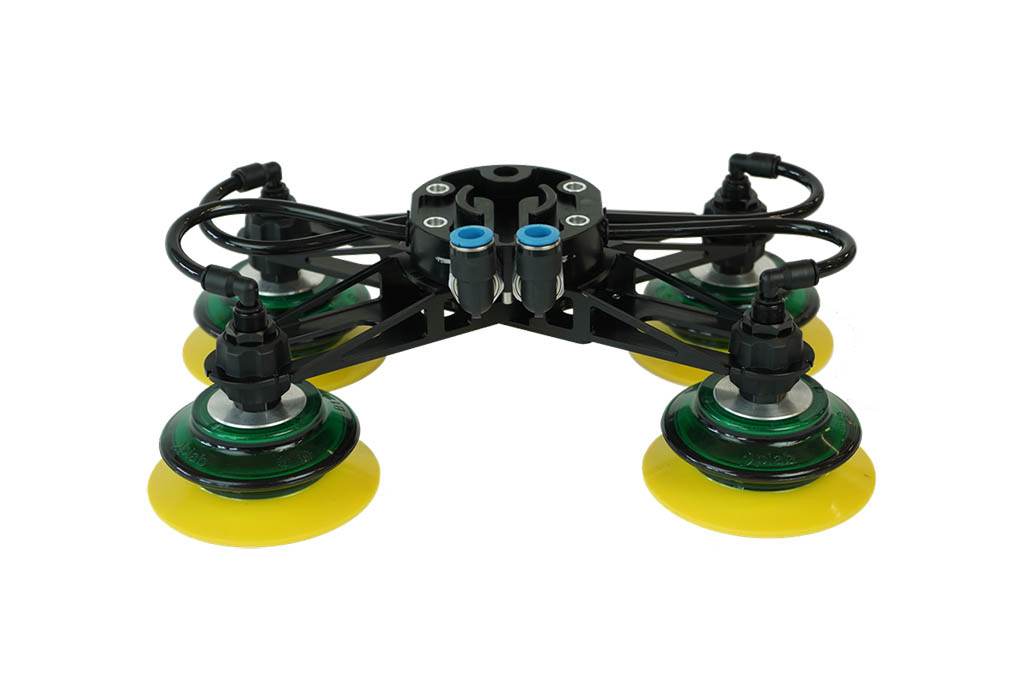

With the support of UR10e and UR20, the series covers a wide range of applications – from light consumer goods packaging to heavy cartons in logistics or the food industry. Together with the PowerPick grippers and URCap software, the PE Series is a solution that can be used in a wide variety of industries without the need for costly adjustments.
Technical details
| model | PE10 | PE20 |
|---|---|---|
| UR cobot | UR10e | UR20 |
| lifting capacity | up to 12.5 kg | up to 25 kg |
| Integrated vertical axis | No | No |
| Maximum stack height | 1500 mm | 8.5 feet |
| cycle time | up to 13 picks/minute | up to 13 picks/minute |
| Typical application | Light loads, medium heights | Heavy loads, medium heights |
Technical details
