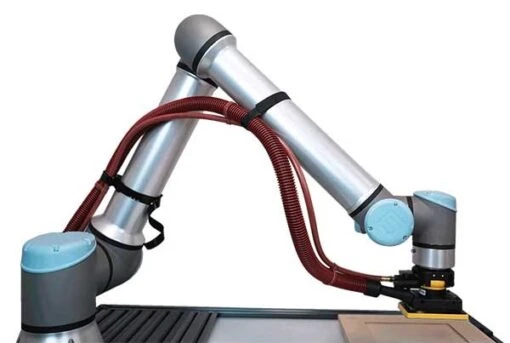

Robotiq grinding kit
Automate one of the toughest and dustiest tasks in your manufacturing facility. The Robotiq Sanding Kit is the only complete hardware and software solution for Universal Robots that reduces sanding tasks from hours to minutes. It is ideal for wood, plastic, metal, fiberglass, and more.
Description
The Robotiq grinding kit solves the usual problems associated with automating surface finishing. Where complex force sensors and weeks of programming were once necessary, this kit offers a plug-and-play solution.
At the heart of it all is the Finishing Copilot software: it automatically generates paths on flat or curved surfaces and adjusts the parameters if the position of the component changes slightly (precision up to 0.2 mm). The kit includes everything you need: the pneumatic eccentric sander, the holder, air control accessories, and abrasives.
Technical details
| Tool type | Pneumatic random orbital sander |
| Max. speed | 12.000 RPM |
| Orbital diameter | 3/16″ |
| Grinding disc diameter | 5″ (approx. 127 mm) |
| Abrasive attachment | Hook and loop fastener; 5 holes |
| Max. air supply | 6.2 bar (90 PSI) |
| Air flow (full speed) | 450 L/min (16 SCFM) |
| Air connection (inlet) | 1/4" NPT thread |
| dust extraction | Prepared for central vacuum; 1″ (25 mm) diameter |
| Weight (mount) | 0.42 kg |
| Grain sizes included | 60, 80, 120, 320, 400 |
| Compatible materials | Wood, plastic, metal, fiberglass, carbon, solid surfaces |
Technical details
