Universal Robots UR8 Long

Ideal for applications that require a long reach with a moderate load capacity

Request a free demo
Home|Collaborative robots|Universal Robots | UR8 Long
ur8 long 0

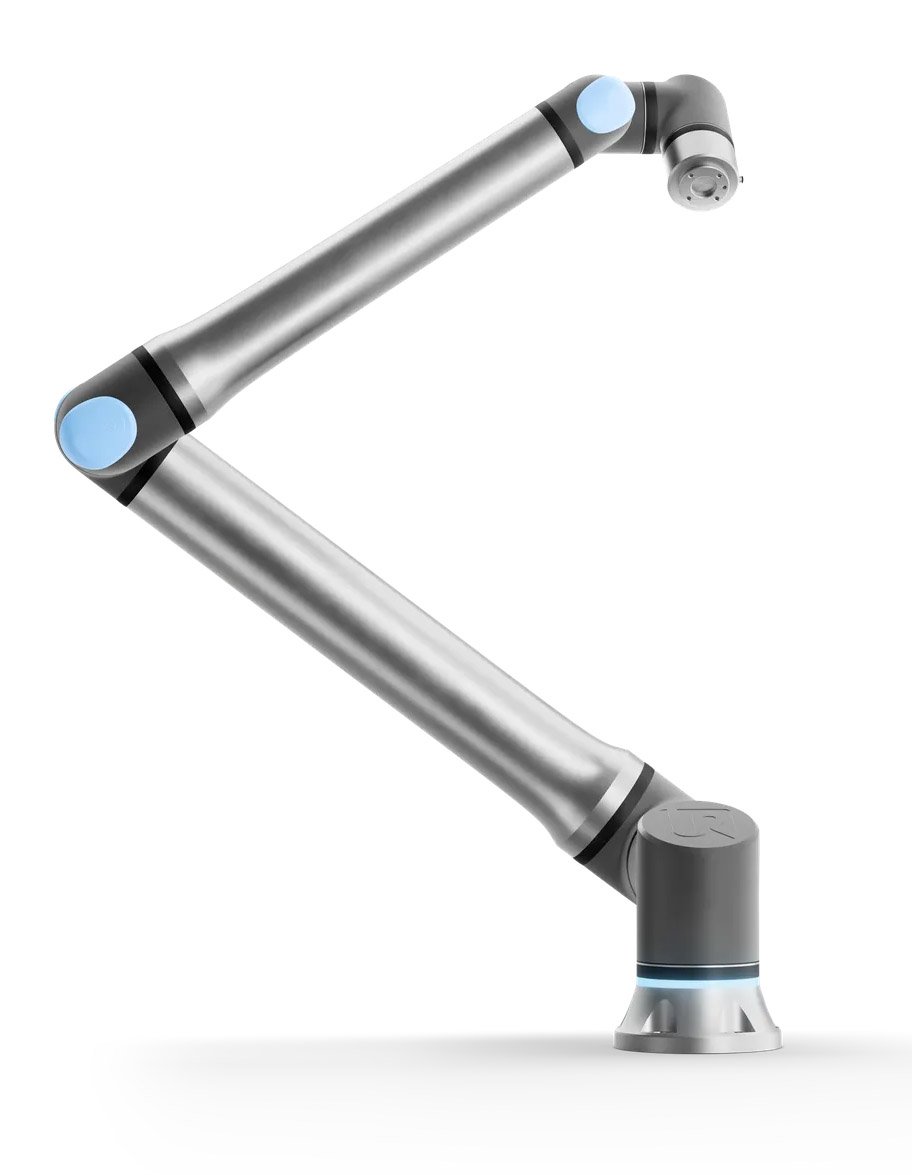

UR8 Long - Long range, flexible use

Long range. Compact design.

The UR8 Long from Universal Robots extends the e-Series with a cobot with a particularly large working radius. With a reach of 1750 mm and a payload of up to 10 kg, it closes the gap between the UR7e and UR10e models. Its low weight of just 44.7 kg facilitates installation and flexible repositioning in production. Thanks to a repeat accuracy of ± 0.08 mm, the UR8 Long is ideal for applications such as machine loading, pick & place, quality inspection or palletizing. As part of the UR+ ecosystem, it is compatible with a wide range of end effectors, software solutions and accessories and can be quickly integrated into existing processes.

Main features

  • 10 kg load capacity - suitable for light to medium loads in production.
  • 1750 mm reach - ideal for applications with a large working radius.
  • ± 0.08 mm repeat accuracy - precise results during handling and inspection.
  • 44.7 kg net weight - easy to install and flexible to use.
  • PolyScope 5 / X compatible - intuitive operation and fast commissioning.
  • Part of the UR+ ecosystem - simple expansion with certified grippers and software.
Get in touch with us

Technical details

Load capacity 8 kg (up to 10 kg under certain conditions)
Reach 1750 mm
Weight 44.7 kg
Protection class IP65
Repeatability ± 0.08 mm (according to ISO 9283)
Software PolyScope 5 / PolyScope X
Data sheet
ur8 long 4

Important facts

High range & precision

With a reach of 1750 mm and a payload of up to 10 kg, the UR8 Long is ideal for applications with a large working radius. Whether pick & place, machine loading or quality inspection - the cobot combines reach with high accuracy and reliability.

Compact & flexible

Despite its size, the UR8 Long weighs just 44.7 kg. This makes it easy to install and flexible to relocate in production. Its slim footprint of Ø 204 mm allows it to be used even where space is limited.

Robust & safe

With IP65 protection class and integrated safety functions, the UR8 Long works reliably in industrial environments. It is designed for safe use in direct collaboration with people.

Simple integration

The intuitive PolyScope 5 / PolyScope X software enables quick commissioning without any programming effort. As part of the UR+ ecosystem, the UR8 Long is compatible with a wide range of grippers, sensors and software solutions.

Video of the Universal Robots UR8 Long

Cobots from UR in use

Would you like to find out more about automation with cobots?

Get in touch with us

The advantages of collaborative robots

Easy to program

Even unskilled technicians can program a cobot for specific tasks within a very short time.

Set up very quickly

The initial setup after delivery is completed within a few hours.

Highly flexible in use

Use the Cobot in almost any position without changing the layout of your production.

Collaborative and secure

Depending on the risk assessment, operation without a safety fence is possible in 80% of cases.
