Robotiq machines
feeding
solution

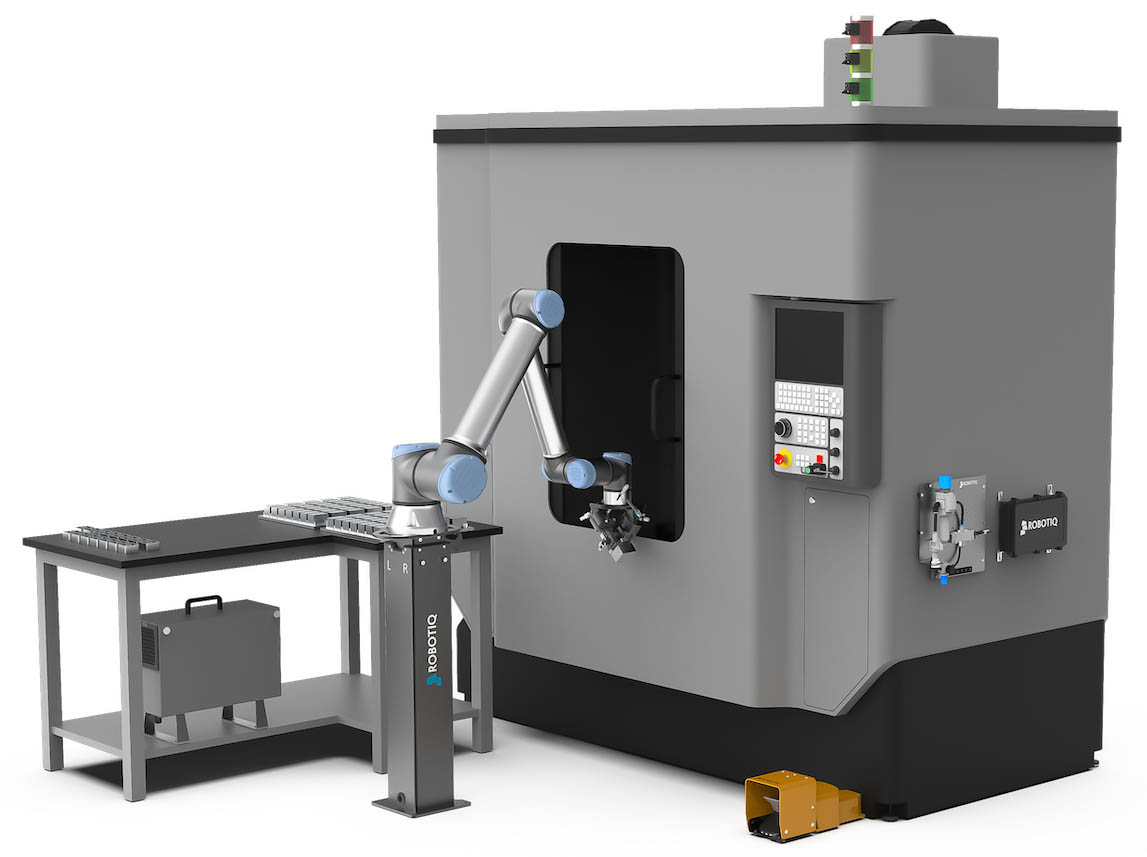

The Robotiq machine loading solution automates the loading and unloading of CNC machines efficiently and reliably. It is suitable for milling and turning machines from a wide range of manufacturers and enables a significant increase in machine running times without interfering with the CNC control system. The solution was developed to relieve production teams, stabilize processes, and significantly reduce setup costs. Thanks to its intuitive software, quick installation, and universal compatibility, the machine loading solution can be put into productive use within a short time.
Description

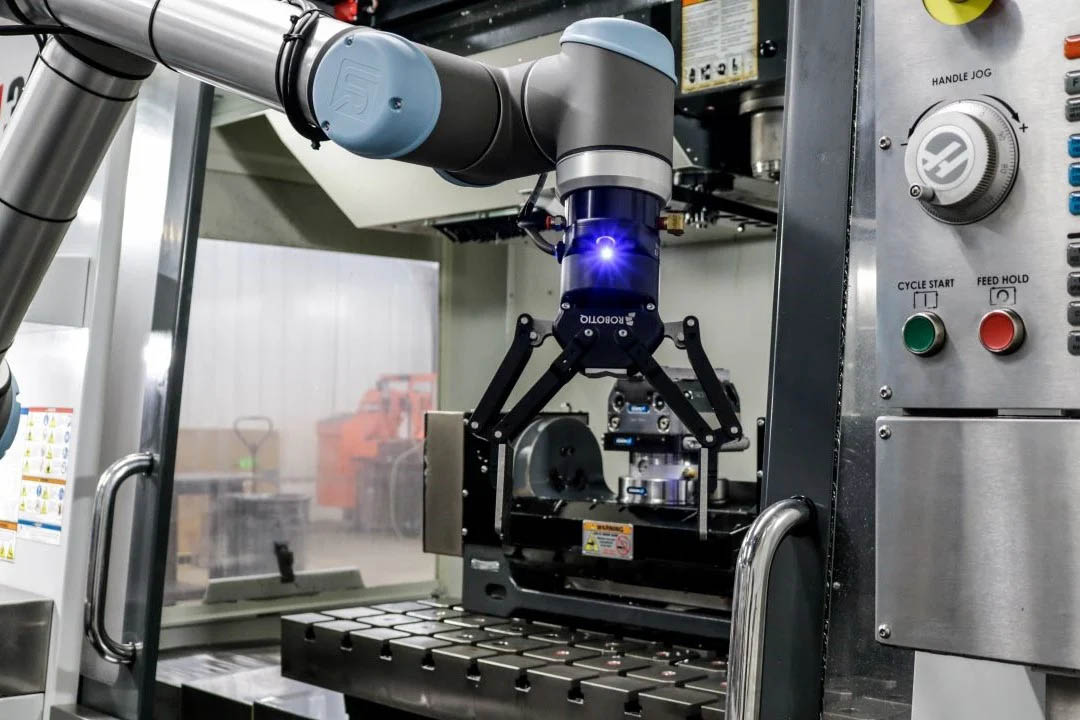

The Robotiq machine tending solution combines gripper technology, sensors, pneumatics, and intelligent software into a complete automation unit. At its heart is the Machine Tending Copilot software, which guides you through the setup step by step and significantly reduces the programming effort.

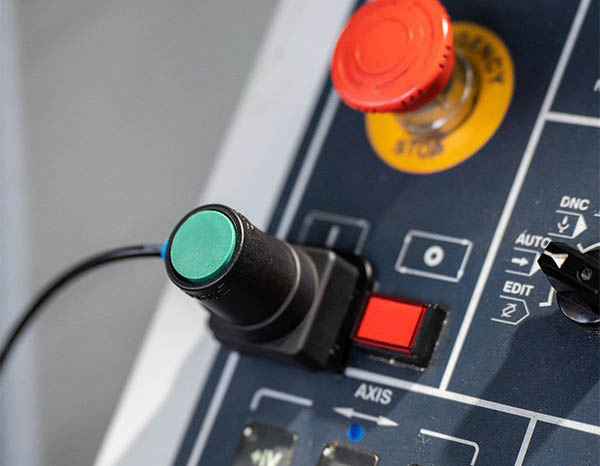

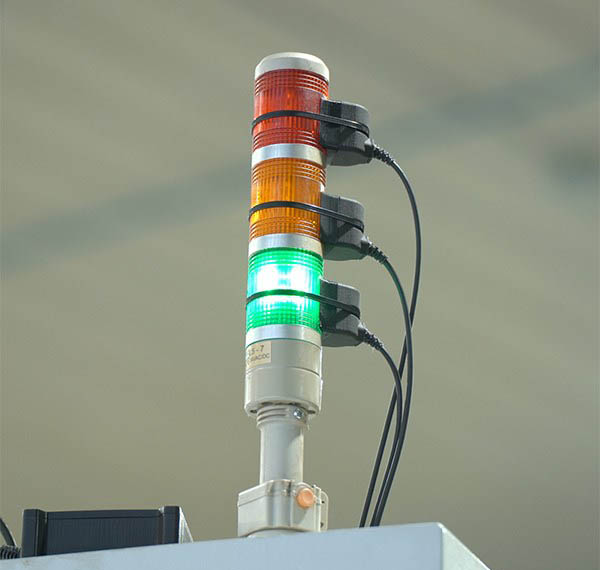

The integrated hardware includes single orgripper, robust interfaces for machine status monitoring, and an external control setup that allows even older CNC machines without modern interfaces to be connected securely.
Optimized motion planning, automatic collision avoidance, and a stable workpiece flow ensure reliable operation—even with higher quantities or unmanned shifts. This makes the machine loading solution particularly suitable for companies seeking flexible capacity expansion or a sustainable reduction in repetitive manual processes.
Technical details
| air connection | BSPP 3/8″ female connector (adapter to NPT 3/8″ male connector included) |
| Minimum air flow | 400 l/min (14.1 cfm) at 6 bar |
| compressed air quality | ISO 8573-1 Class 7.4.4.1 |
| supply voltage | 24 V |
| type of care | DC |
| Gripping force Hand-E | 20–180 N |
| Maximum workpiece size | up to 127 mm (5 in) |
| Hand-E protection class | IP67 |
| Maximum workpiece weight – Single Hand-E (UR5e) | 3.9 kg |
| Maximum workpiece weight – Single Hand-E (UR10e & UR20) | 5 kg |
| Maximum workpiece weight – Dual Hand-E (UR5e) | 1.3 kg |
| Max. workpiece weight – Dual Hand-E (UR10e & UR20) | 2 × 5 kg |
