SMC RMMA

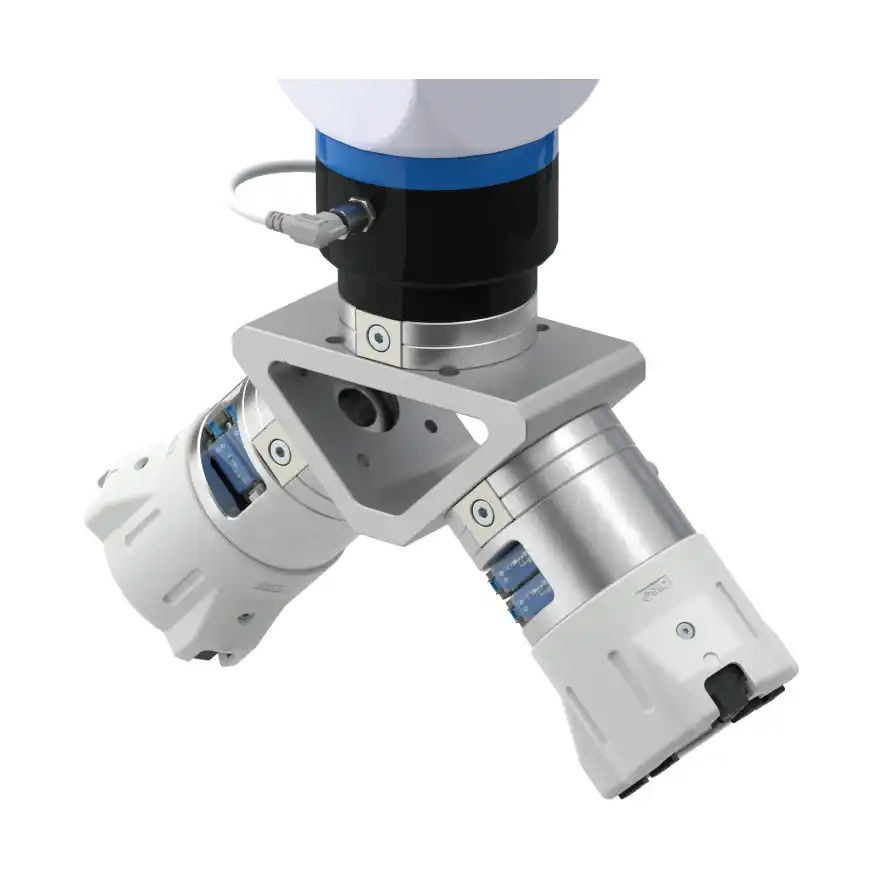

The SMC RMMA Multi-Hand Adapter allows you to mount up to three gripper a single robot arm. This UR+-certified accessory enables the simultaneous handling of various workpieces, significantly increasing the efficiency of your cobot cell. It is the ideal choice for complex pick-and-place tasks or assembly processes where different components need to be moved without changing tools.
Description

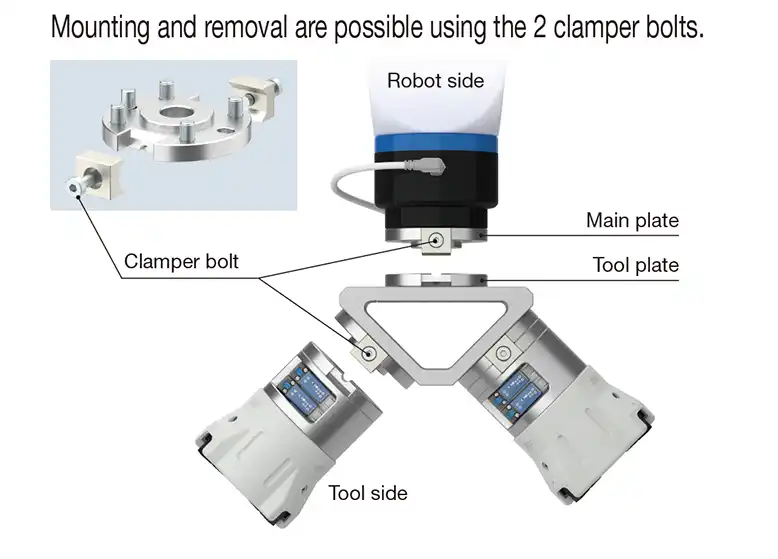

The SMC RMMA Multi-Hand Adapter was developed to expand the range of applications for cobots. Thanks to its compact and weight-optimized design, the robot’s available payload is utilized most effectively for the workpieces. The mechanical interface complies with the ISO 9409-1-50-4-M6 standard, ensuring easy integration with common robot models.

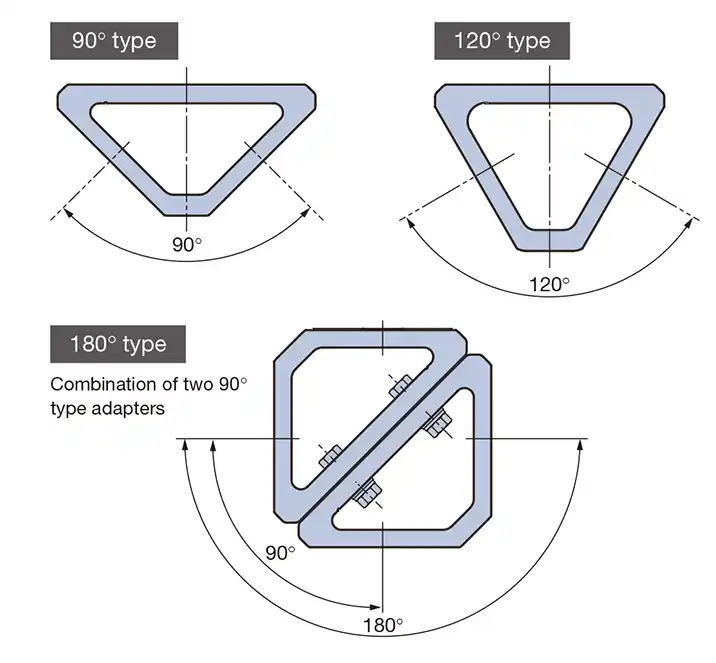

The adapter offers exceptional flexibility thanks to its three different mounting angles for the gripper. This allows for precise alignment of the tools with the specific geometry of the components or the conditions in the workspace. Whether for palletizing or machine loading, the multi-hand adapter transforms a standard cobot into a multifunctional handling system.
Technical details
| Number of gripper that can be mounted | Up to 3 |
| Assembly Interface (Robot) | Complies with ISO 9409-1-50-4-M6 |
| Assembly interface (gripper) | Complies with ISO 9409-1-50-4-M6 |
| mounting bracket | Adjustable to 3 different positions |
| Weight | approx. 241 g to 365 g (depending on the model) |
| Material | High-strength aluminum (anodized) |
| compatibility | Universal Robots, Fanuc, Omron, Yaskawa |
