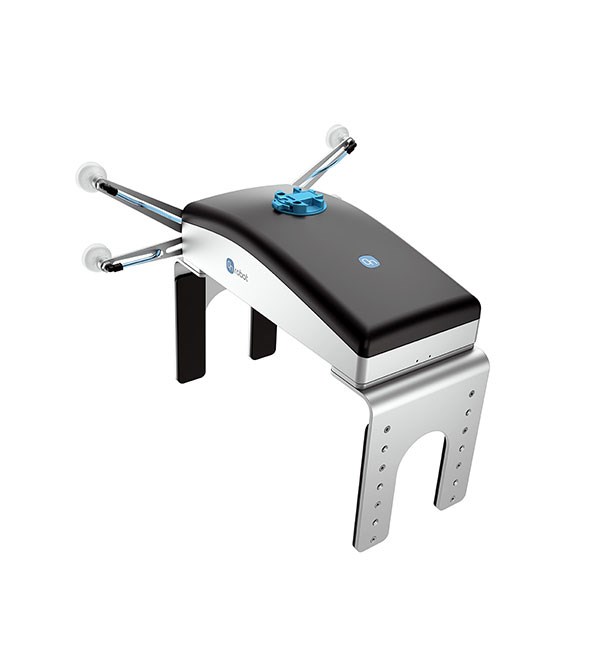

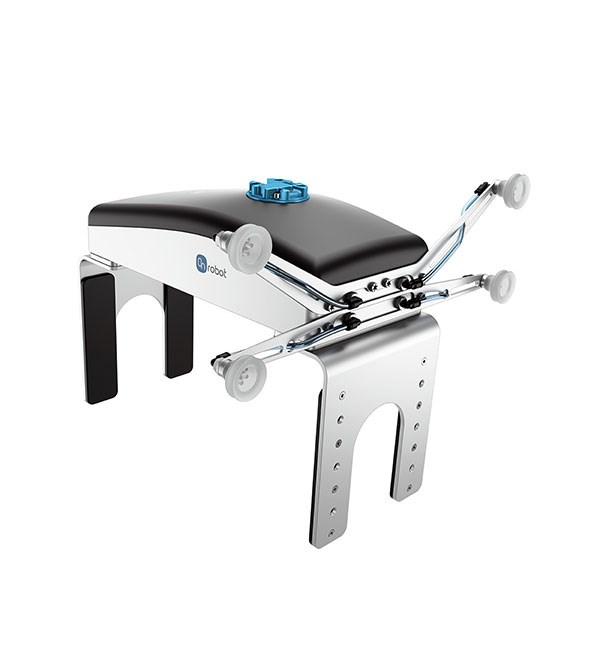

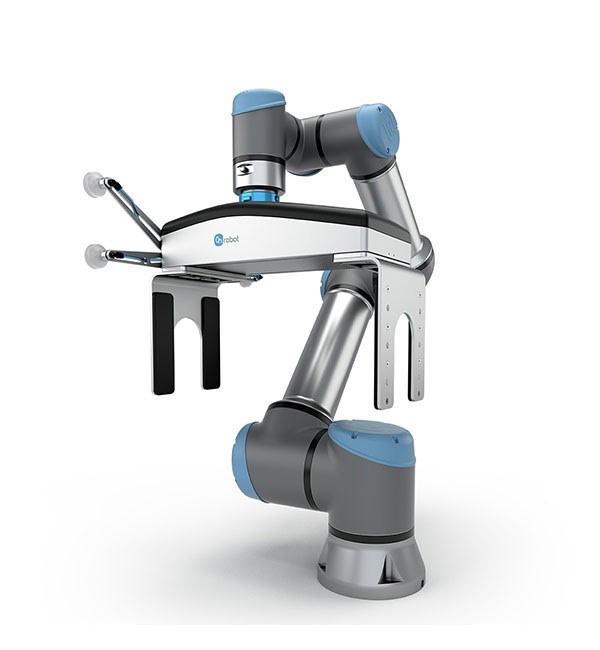

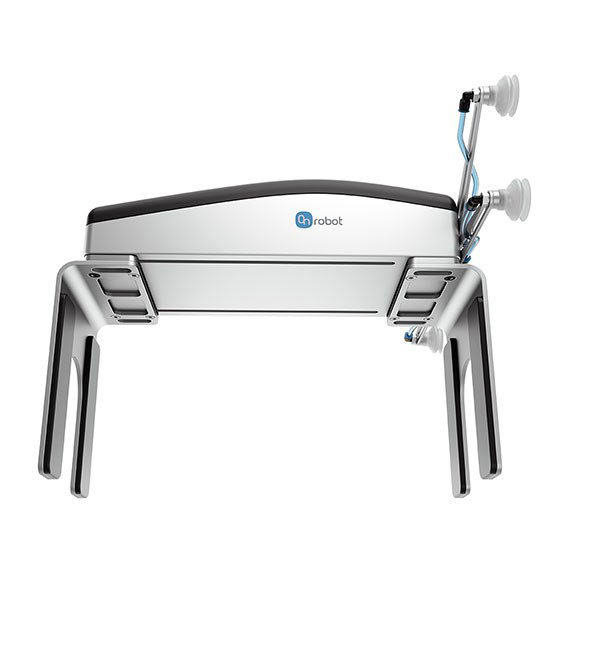

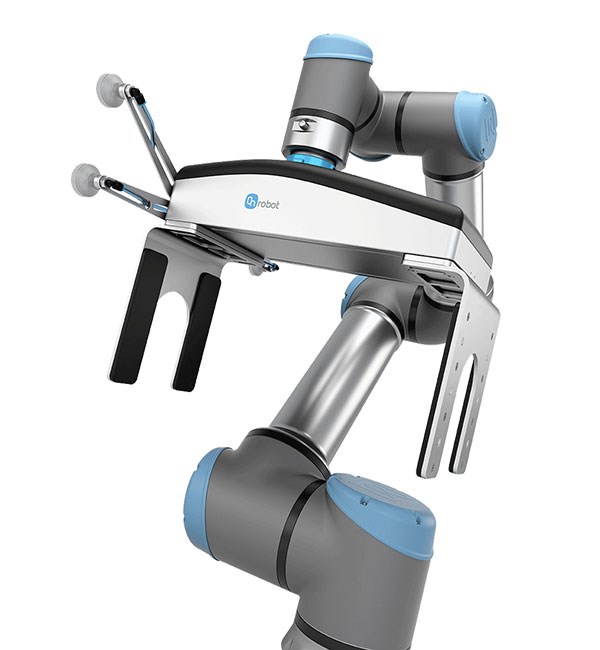

OnRobot 2FGP20 gripper
The OnRobot 2FGP20 is an electric gripper palletizing and packaging tasks with a payload of up to 20 kg. Its large stroke, adjustable gripper arms, and integrated vacuum gripper for interlayers make it ideal for open cartons, display packaging, and applications that cannot be reliably solved with conventional vacuum grippers. With no compressed air required and easy integration, it is a versatile solution for modern end-of-line processes.
Description
The 2FGP20 combines high flexibility with stable performance and is particularly suitable for automated end-of-line applications. The gripper arms can be quickly adapted to different packaging formats, making it ideal for changing products or mixed pallets. Thanks to plug-and-play integration and user-friendly software, commissioning is easy. Even in environments with limited installation space, the gripper offers impressive advantages gripper its compact design. Companies benefit from a reliable, low-maintenance system that combines several process steps, thereby increasing efficiency.
Technical details
| payload | up to 20 kg |
| total stroke | approx. 260 mm |
| grip width | approx. 170–430 mm |
| gripping force | approx. 80–400 N |
| repeatability | ± 0.5 mm |
| Weight | approx. 3.5–5.2 kg |
| Dimensions (L × W × H) | Approx. 400 × 121.6 × 188 mm |
| operating voltage | 24 V DC |
| degree of protection | IP54 |
