M2Smart HMI10 Radio

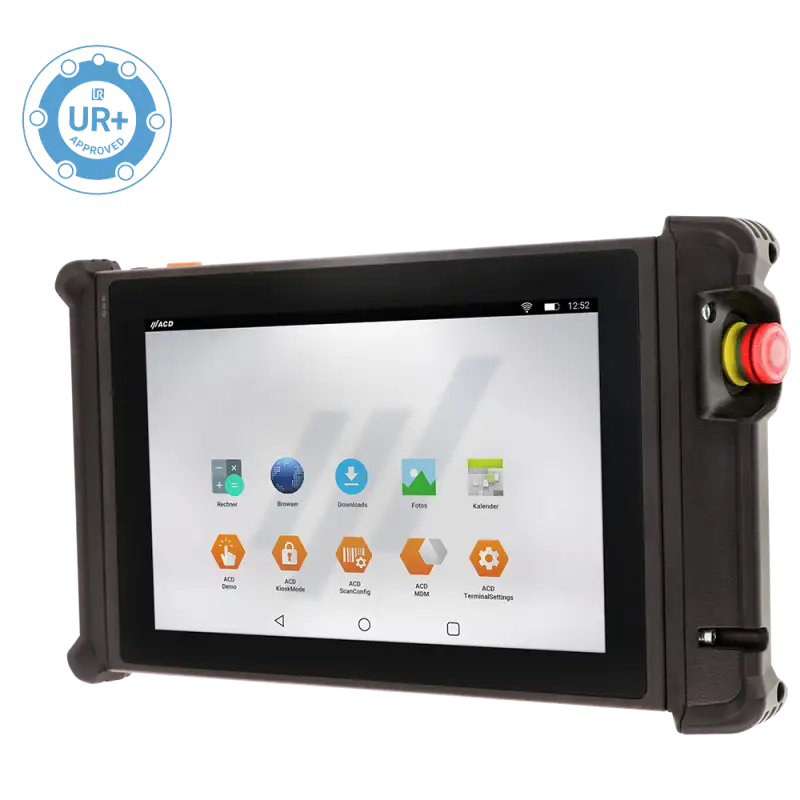

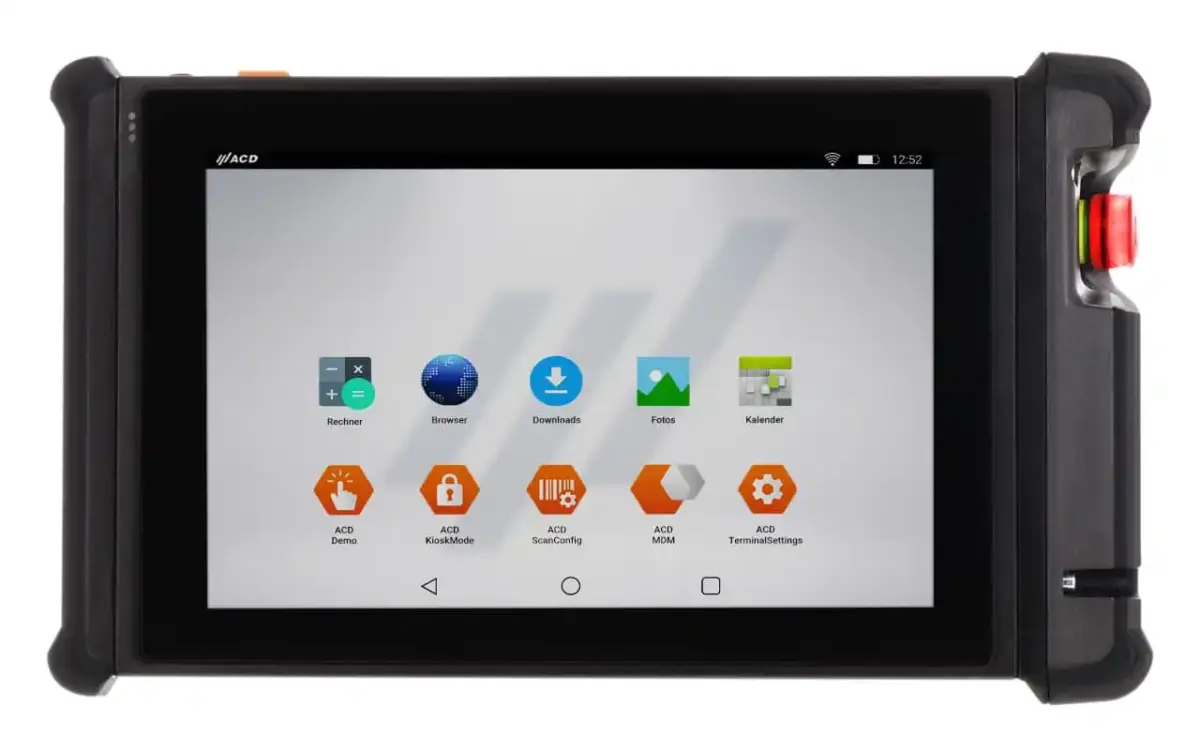

The M2Smart® HMI10 Radio is a wireless mobile HMI device for operating machines, systems, and robots. The 10.1-inch touchscreen combines mobility with functional safety in accordance with DIN EN ISO 13849 and enables flexible operation directly at the point of use. Thanks to its replaceable battery, Android™ Industrial+ operating system, and rugged design, the system is suitable for demanding industrial environments.
Description
The M2Smart® HMI10 Radio was developed for the mobile operation of machines, plants, and robotic systems. The device combines an industrial-grade 10.1-inch display with a wireless safety architecture, thereby providing greater flexibility during commissioning, maintenance, and production.
Operating and visualization data are transmitted via Wi-Fi and Bluetooth. Safety-related signals are processed separately using a secure communication protocol. The control unit and gateway are conveniently paired via NFC.
Thanks to Android™ Industrial+, regular security updates directly from the manufacturer, and a modular architecture, the system can be adapted to meet a variety of requirements in robotics and automation. Optional add-ons such as cameras, additional modules, or custom control elements are available.

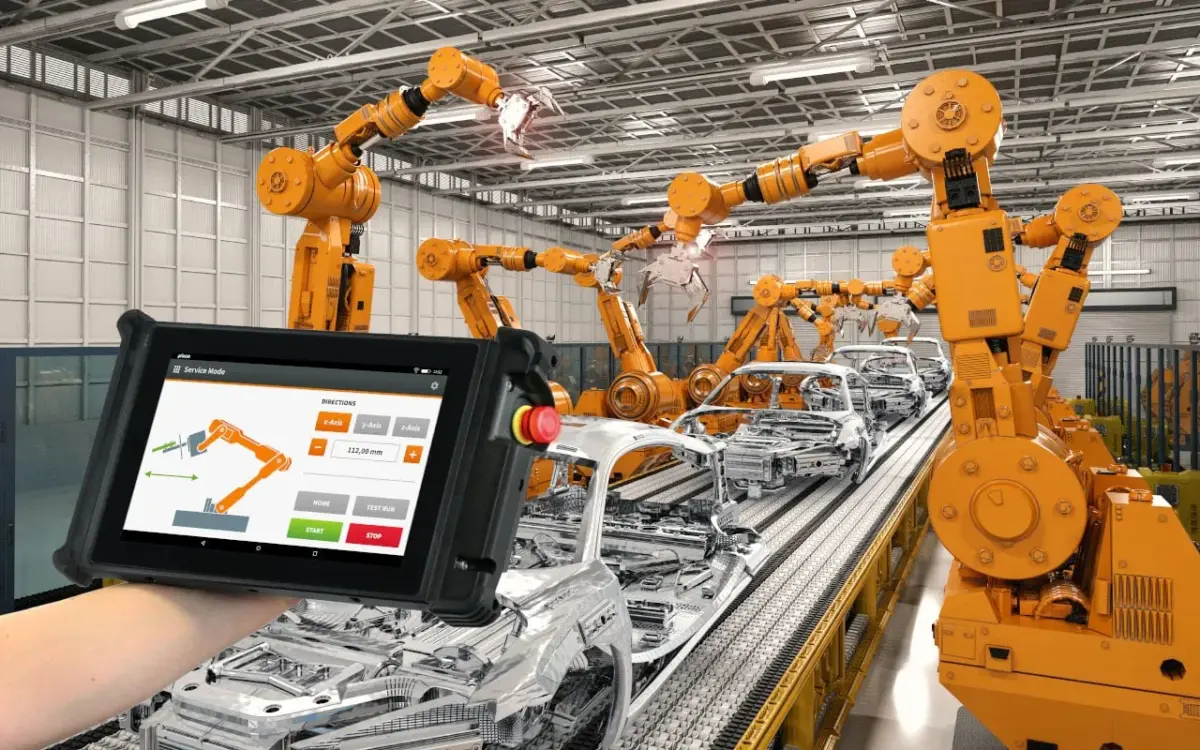

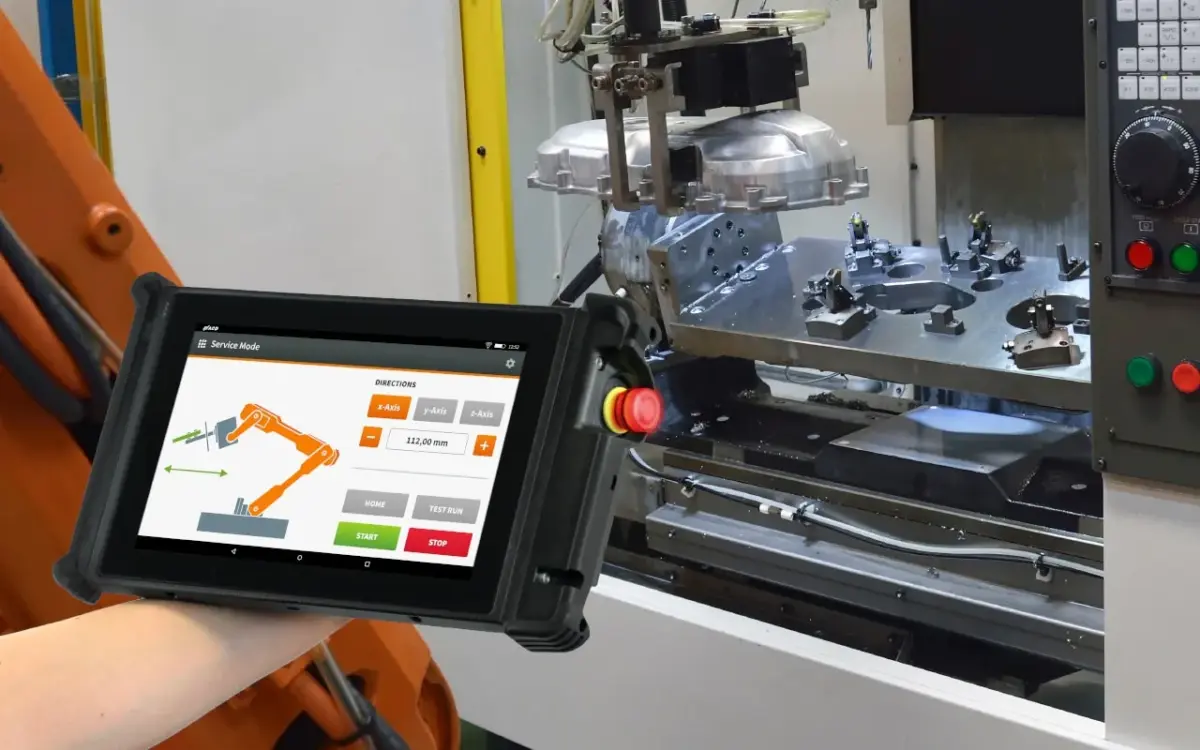

Typical applications include:
- Cobots and Industrial Robots
- Machinery and Plant Engineering
- Automation Solutions
- Service and Maintenance Work
- Commissioning and Retrofits
- Custom Machine Building
Technical details
| property | value |
|---|---|
| Display | IPS TFT Color Display |
| Display Size | 10.1 inches (16:10) |
| Resolution | 1280 × 800 pixels |
| Brightness | 400 cd/m² |
| Touchscreen | Capacitive, anti-glare hard coating (3H) |
| communication | Wi-Fi 2.4 GHz / 5 GHz, Bluetooth 5.0 |
| safety | Performance Level d according to ISO 13849 can be achieved |
| NFC | Reader/Writer Mode, Peer-to-Peer, Card Emulation |
| Camera | Optional 5 MP autofocus camera with lighting |
| Operating System | Android™ Industrial+ |
| degree of protection | IP54 |
| dimensions | 333 × 196 × 93 mm |
| Weight | about 1,700 g |
| Battery capacity | 22.8 Wh (6,000 mAh / 3.8 V) |
| operating temperature | -20 °C to 50 °C |
