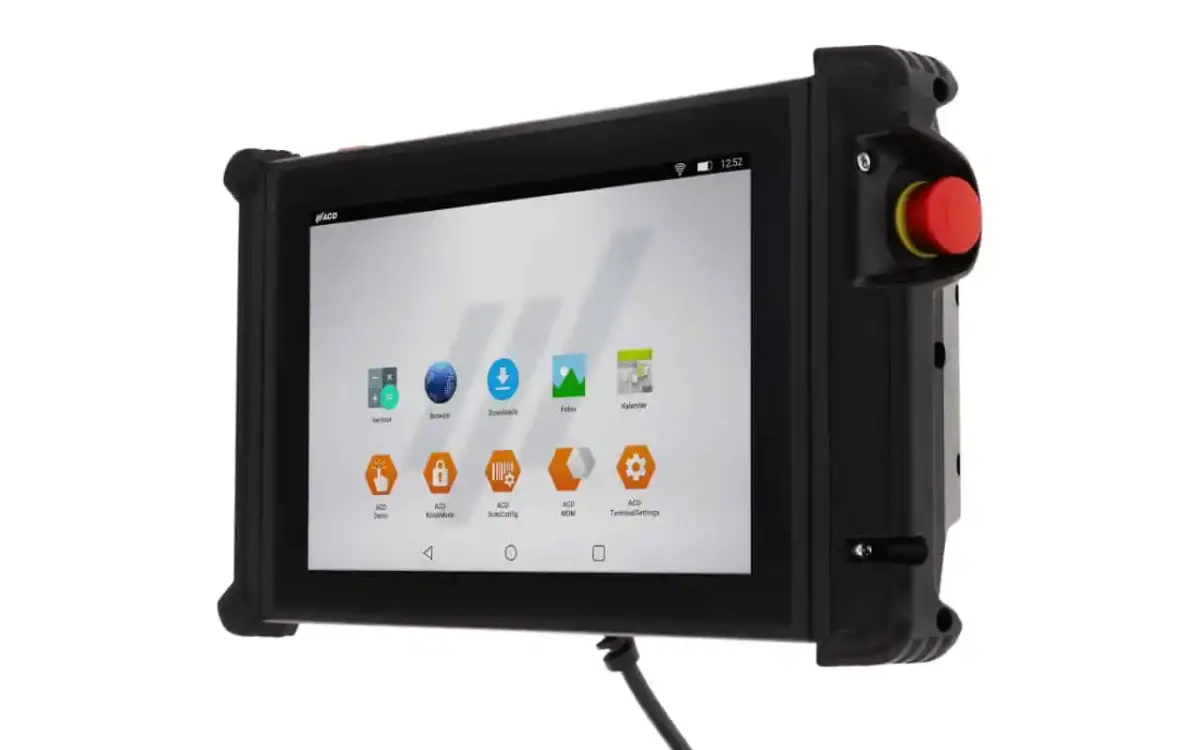

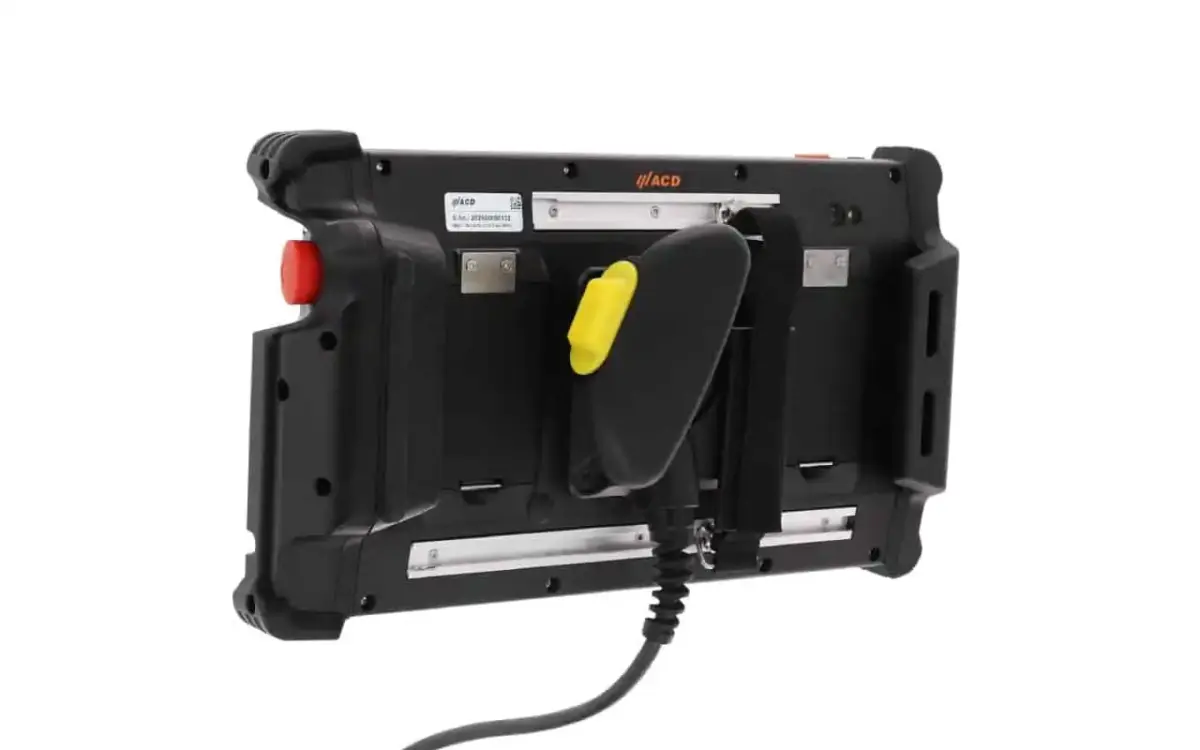

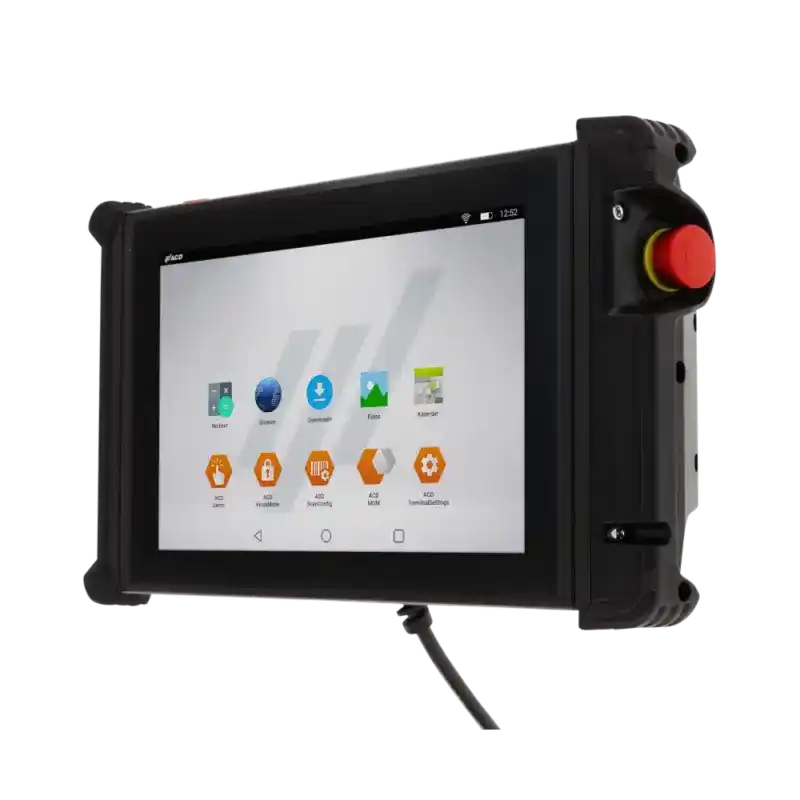

M2Smart® HMI10 Wired
The M2Smart® HMI10 Wired is a wired mobile HMI designed for the safe operation of machines, systems, and robots. The 10.1-inch touchscreen combines user-friendly visualization with rugged industrial hardware and an operating system specifically developed for industrial applications. Thanks to its wired safety features, the system is particularly well-suited for applications with high demands on availability and reliability.
Description
The M2Smart® HMI10 Wired was developed for the industrial operation of modern machines, production facilities, and robotic systems. This wired operator terminal combines rugged hardware with a high degree of user-friendliness and supports safe workflows in automated environments.
The 10.1-inch display, with a resolution of 1280 × 800 pixels, provides a clear visualization of processes, machine statuses, and robot programs. At the same time, the wired architecture ensures reliable transmission of operating and safety functions.
Android™ Industrial+ provides a platform that is available for the long term and optimized for industrial applications. Additional features such as a camera, NFC, or other control modules can be integrated as options. The system is suitable for both new installations and retrofit projects.
Typical applications include:
- Cobots and Industrial Robots
- Machinery and Plant Engineering
- Automation Technology
- Assembly and Production Lines
- Service and Maintenance Applications
- Custom Machine Building
Technical details
| property | value |
|---|---|
| Display | IPS TFT Color Display |
| Display Size | 10.1 inches (16:10) |
| Resolution | 1280 × 800 pixels |
| Brightness | 400 cd/m² |
| Touchscreen | Capacitive, anti-glare hard coating (3H) |
| communication | Wired via hybrid cable |
| Cable length | 5 m or 10 m |
| Operating System | Android™ Industrial+ |
| CPU | NXP® i.MX8M Mini |
| Storage | 16 GB flash memory, 4 GB RAM |
| safety | Performance Level e as defined by ISO 13849 can be achieved |
| degree of protection | IP54 |
| dimensions | 333 × 196 × 93 mm |
| Weight | approx. 1,650 g |
| power supply | 15–24 V DC |
| Optional Battery | 22.8 Wh Li-ion replaceable battery |
| operating temperature | -20 °C to 50 °C |
