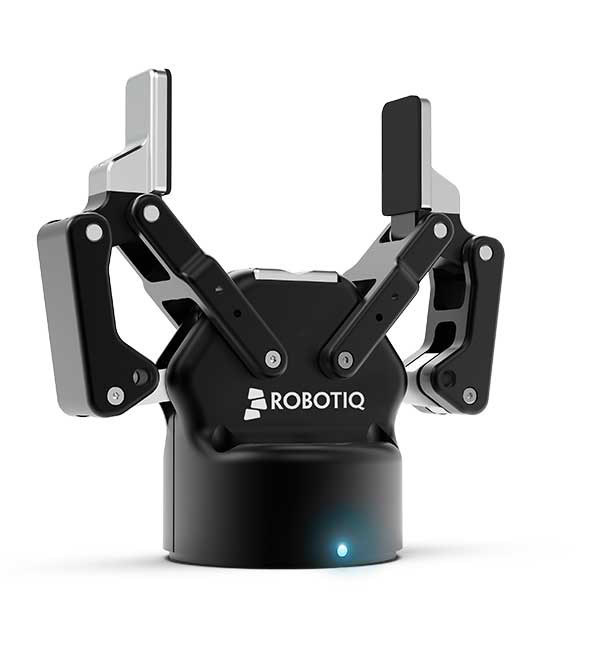

Robotiq 2F-85

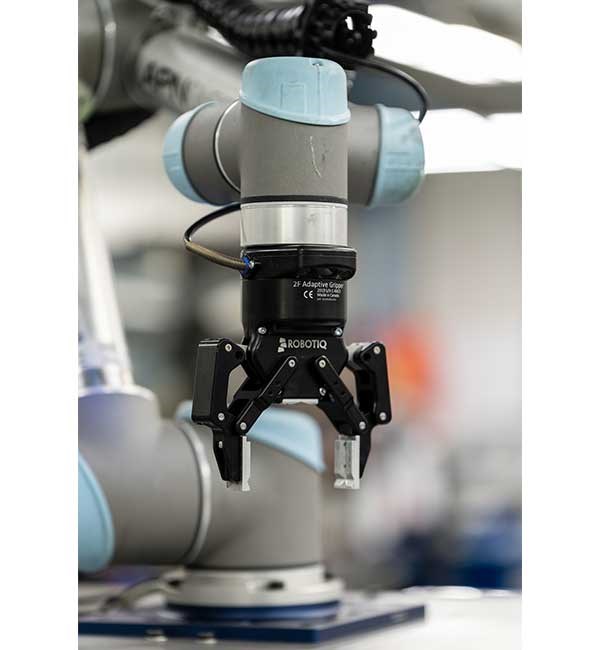

The Robotiq 2F-85 is an electricgripper cobots that can flexibly and reliably handle a wide variety of workpiece sizes and shapes with a stroke of 85 mm and adjustable gripping force. With a recommended payload of up to 5 kg, it is particularly suitable for pick & place, machine tending, or assembly tasks that frequently require format or product changes. Thanks to the plug-and-play kit and simple programming via URCap, integration into Universal Robots systems is quick and easy.
Description
The Robotiq 2F-85 was developed for production environments with varying components. Its adaptive 2-finger mechanism automatically adapts to the shape of the workpiece, whether round, flat, or irregular. Adjustable gripping force and speed allow sensitive components to be gripped just as securely as robust components.
The gripper both external and internal gripping and can pick up objects either form-fitting or parallel. In many cases, this eliminates the need to change gripper jaws or additional tools.
With its low weight, compact design, and intuitive control via URCap, the Robotiq 2F-85 is ideal for applications such as pick & place, assembly, machine tending, or simple inspection tasks. Companies that frequently switch between product variants benefit particularly from its flexibility and reliability.
Technical details
| grab stroke | 0–85 mm |
| gripping force | 20–235 N |
| Recommended payload | up to approx. 5 kg |
| grasping speed | 20–150 mm/s |
| repeatability | approx. 0.05 mm |
| Weight | approx. 0.9 kg |
| operating voltage | 24 V DC |
| control | Electric, adjustable force/position/speed |
| degree of protection | IP54 |
