SMC LEHR
gripper SMC LEHR gripper electric gripper brings intelligence and maximum process reliability to your cobot application. As a certified solution for leading manufacturers such as Universal Robots, the gripper can be put into operation directly gripper a single M8 electrical cable. Thanks to the battery-free absolute encoder, time-consuming reference runs after a restart are eliminated, which sustainably increases efficiency in your production. Since it is a fully electric system, it also offers a clean and energy-saving alternative to traditional pneumatic grippers.
Description
The SMC LEHR series was developed to fully leverage the benefits of electrification. By eliminating the need for compressed-air hoses, installation is not only simplified, but the carbon footprint is also reduced by up to 52%.

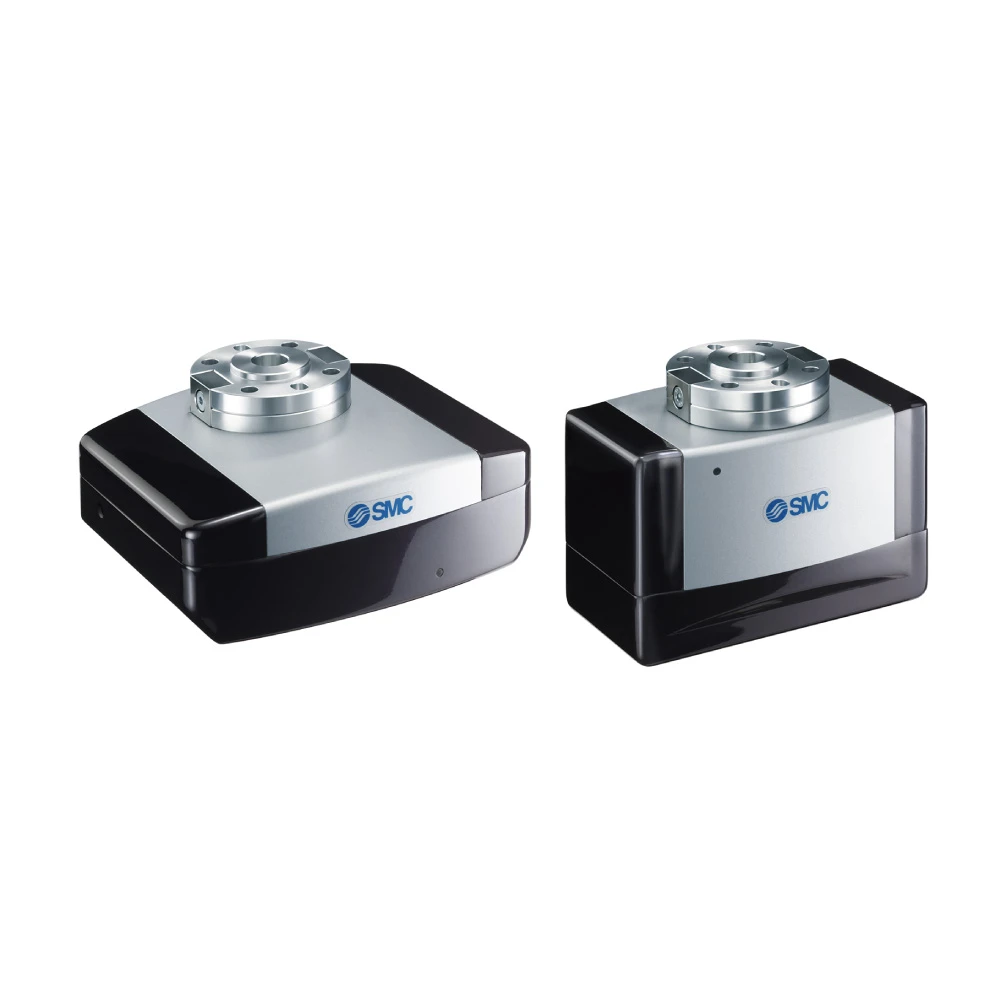

The system is available in two configurations: The Basic model features a short distance between the mounting point and the gripper center for minimal lever forces, while the Longitudinal model is optimized for use in narrow workspaces. Particular emphasis is placed on flexibility: gripping force, position, and speed can be precisely adjusted to suit the specific workpiece. The integrated manual tool changer also allows the gripper to be mounted quickly and securely on the robot gripper just two clamping bolts.
With a repeatability of ±0.1 mm and a robust design, the LEHR is the perfect choice for modern, flexible production lines.
Technical details
| Drive type | Electric (lead screw + belt) |
| Gripper stroke (total) | 50 mm |
| gripping force | 60 to 140 N (adjustable) |
| repeatability | ±0.1 mm |
| sensory analysis | Battery-free absolute encoder |
| Weight | approx. 1.0 kg |
| connection | M8, 8-pin |
| degree of protection | IP20 |
| Mounting interface | ISO 9409-1-50-4-M6 |
| compatibility | UR (URCap), Fanuc (CRX plug-in), Omron/Techman |
