Robotiq FT 300-S Force-Torque Sensor
The Robotiq FT 300-S is a high-precision force/torque sensor that provides reliable feedback to Universal Robots cobots during force-sensitive applications. It is designed to make demanding automation tasks such as joining, polishing, grinding, deburring, or quality testing more reproducible and stable. Direct integration with Robotiq Force Copilot software makes the FT 300-S intuitive to set up and delivers consistent measurements even under variable process conditions.
Description
The Robotiq FT 300-S expands the tactile feedback of a cobot and enables controlled force application and precise detection of contact points. The high measurement resolution makes the sensor particularly suitable for tasks such as edge detection, grinding, deburring, joining, or precise force testing.
Even complex processes can be configured in just a few steps using the Force Copilot software, without the need for in-depth knowledge of robotics or measurement technology. The sensor is fully UR-certified, is mounted directly on the cobot's wrist, and delivers reproducible data from the very first use. Its robust design ensures reliable performance even under continuous load, changing forces, and high cycle rates.
Technical details
| parameters | value |
|---|---|
| Number of measuring axes | 6 (Fx, Fy, Fz, Tx, Ty, Tz) |
| Measuring range – force | ± 300 N |
| Measuring range – Moment | ± 30 N·m |
| Resolution – Power | < 1 N (achsenabhängig) |
| Resolution – Moment | approx. 0.01 Nm (axis-dependent) |
| repeatability | Optimized for sensitive, high-precision movements |
| communication | Integration via Robotiq URCap |

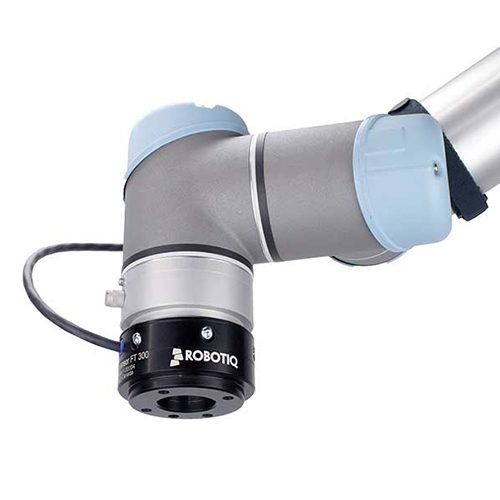

| assembly | Directly on the cobot's wrist |
| compatibility | Cobots from Universal Robots (e-Series and CB-Series, depending on the kit) |
| degree of protection | Industrial-grade, robust design |
